| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | TUV、ITS、CSA、BV、SGS 、CNAS(cost additional) |
| Model Number: | GW-2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 25 days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 set/ month |
| Control: | PLC | Display: | 7 Inch Touch Screen |
|---|---|---|---|
| Thermocouple: | Ф1mm | Glowing Filament: | Ф4mm ± 0.04mm Ni/Cr(77/20) |
| Highlight: | IEC 60695 Flammability Tester,7 Inch Touch Screen Flammability Tester |
||
7 Inch Touch Screen Flammability Tester PLC Glow Wire Test Equipment IEC60695
Product details:
HongTong has upgraded the glow wire tester to be PLC control version, the new PLC touch screen glow wire test equipment is more humanized and intelligent. The operation is much easier, and the apprance is more exquisite.
The test device conforms to the standard of IEC60695-2-10, IEC60695-2-13 and meets the standard requirement of UL746A. It simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in s short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the No flame ignition source fire test to test initiation temperature and flammability index of related glowing filament.
Main technical parameters:
| Power | 1kVA 220V /50Hz or 110V /60Hz |
| Control system | PLC |
| Display | 7 inch touch screen |
| Glowing filament | Ф4mm ± 0.04mm Ni/Cr(77/20), ring shape |
| Thermocouple | imported Ф1mm, type K, temperature resistance of armour is 1100 ℃ |
| Ohmic heating temperature of glowing filament | 500 ℃ ～ 960 ℃ |
| Temperature fluctuation | < 3 ℃ |
| Specimen pressure on glowing filament | 0.95N±0.1N( adjustable ) |
| Maximum depth of heating | 7mm ± 0.5mm |
| Specimen movement speed | 10mm /s ～ 25mm /s |
| Testing time | 30s±0.1s |
| Thickness of ignite bedding board | 10mm ,white pine board cover 12g /m 2 ～ 30g /m 2 standard silk paper |
| Test volume | 0.5m 3 black background ,background illuminance ≤ 20Lx |
| Standard | IEC60695-2-10, IEC60695-2-13, UL746A |
Power: 1kVA 220V /50Hz or 110V /60Hz
Control system: PLC
Display: 7 inch touch screen
Glowing filament: Ф4mm ± 0.04mm Ni/Cr(77/20), ring shape
Thermocouple: imported Ф1mm, type K, temperature resistance of armour is 1100 ℃
Ohmic heating temperature of glowing filament: 500 ℃ ～ 960 ℃
Temperature fluctuation: < 3 ℃
Specimen pressure on glowing filament: 0.95N±0.1N( adjustable )
Maximum depth of heating: 7mm ± 0.5mm
Specimen movement speed: 10mm /s ～ 25mm /s
Testing time: 30s±0.1s
Thickness of ignite bedding board: 10mm ,white pine board cover 12g /m 2 ～ 30g /m 2 standard silk paper
Test volume: ≥ 0.5m 3 black background ,background illuminance ≤ 20Lx

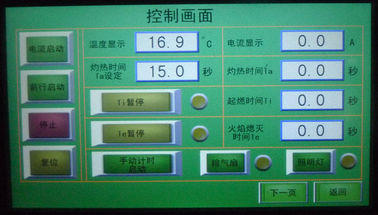

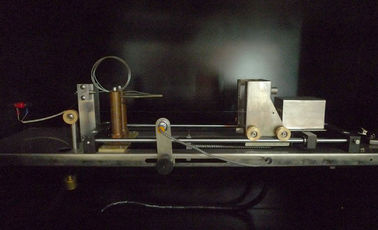

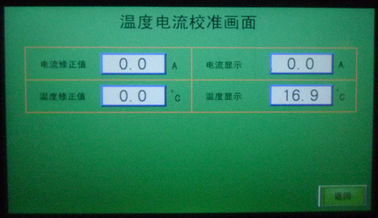

Picture view:
HongTong has a strong ability in R&D, we can offer best solutions to meet customers' special testing requirements. If you have any inquries, you are welcome here, we will try our best to support you!
