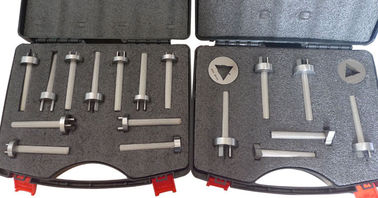

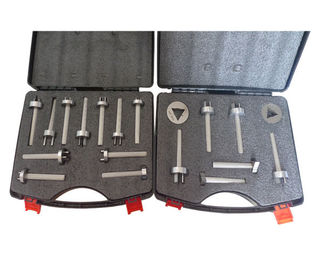

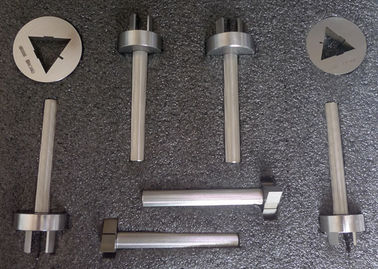

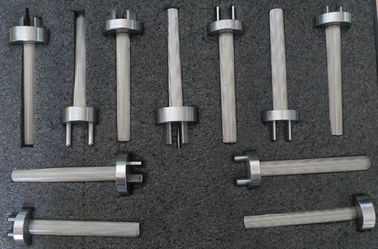

Precision Stainless Steel Plug Socket Universal Measuring Gauges BS1363 IEC60884 GB1002

Precision Stainless Steel Plug Socket Universal Measuring Gauges BS1363 IEC60884 GB1002

  • Precision Stainless Steel Plug Socket Universal Measuring Gauges BS1363 IEC60884 GB1002
  • Precision Stainless Steel Plug Socket Universal Measuring Gauges BS1363 IEC60884 GB1002
  • Precision Stainless Steel Plug Socket Universal Measuring Gauges BS1363 IEC60884 GB1002
  • Precision Stainless Steel Plug Socket Universal Measuring Gauges BS1363 IEC60884 GB1002
Precision Stainless Steel Plug Socket Universal Measuring Gauges BS1363 IEC60884 GB1002
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV,SGS, CSA, CNAS(cost additional)
Model Number: HT-PSG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Carring Case
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Standard: BS1363 IEC60884 GB1002 Material: Stainless Steel
Color: Metallic
High Light:

electric socket tester

,

socket tester

Precision Stainless Steel Plug Socket Universal Measuring Gauges BS1363 IEC60884 GB1002





Product information:



HongTong has designed and manufactured series of precision plugs sockets measuring gauges. These measuring gauges confirm to the standard of BS1363, IEC60884,GB2099.1-2008 clause9,GB1002-2008 and GB1003-2008 and etc., which are used for the dimensional measurement and verification of the plug socket for household and similar use.



They are the necessary testing devices used in the laboratory and measurement test department. The specific measuring gauges are included as follows:



GB1002-2008 measuring gauge:

No.

Name

Standard figure

quantity

remarks

1

Measuring gauge for single phrase two-pole socket

Figure 6

1

6A and 10A are used universally

2

Measuring gauge for single phrase two-pole socket with ground pin

Figure 7(10A)

1

6A and 10A are used universally

3

The internal Measuring gauge for single phrase two-pole socket with ground pin

Figure 7(16A)

1



4

The external Measuring gauge for single phrase two-pole socket with ground pin

Figure 8(10A)

1



5

The external Measuring gauge for single phrase two-pole socket with ground pin

Figure 8(16A)

1



6

The single-phase two pole socket maximum gauge

Figure 9(10A)

1



7

The single-phase two pole socket minimal gauge

Figure 10(10A)

1



8

Single-phase two-pole socket check gauge

Figure 11(10A)

1



9

The single-phase two pole socket measuring gauge without contact

Figure 12(10A)

1



10

The single phrase two-pole socket with ground pin maximum gauge

Figure 13(10A)

1



11

The single phrase two-pole socket with ground pin maximum gauge

Figure 13(16A)

1



12

The single phrase two-pole socket with ground pin minimal gauge

Figure 14(10A)

1



13

The single phrase two-pole socket with ground pin minimal gauge

Figure 14(16A)

1



14

The single phrase two-pole socket with ground pin check gauge

Figure 15(10A)

1



15

The single phrase two-pole socket with ground pin check gauge

Figure 15(16A)

1



16

The single phrase two-pole socket with ground pin measuring gauge without contact

Figure 16(10A)

1



17

The single phrase two-pole socket with ground pin measuring gauge without contact

Figure 16(16A)

1



18

The general gauge for the round plug part of the Single-phase two-pole double socket

Figure 17(10A)

1



19

The check gauge for the round plug part of the Single-phase two-pole double socket

Figure 18(10A)

1



20

handle



19





GB1003-2008 measuring gauge

1

The internal measuring gauge for three-phase plug

Figure 3(16A)

1



2

The internal measuring gauge for three-phase plug

Figure 3(25A)

1



3

The internal measuring gauge for three-phase plug

Figure 3(32A)

1



4

The external measuring gauge for three-phase plug

Figure 4(16A)

1



5

The external measuring gauge for three-phase plug

Figure 4(25A)

1



6

The external measuring gauge for three-phase plug

Figure 4(32A)

1



7

The maximal gauge for three-phase plug

Figure 5(16A)

1



8

The maximal gauge for three-phase plug

Figure 5(25A)

1



9

The maximal gauge for three-phase plug

Figure 5(32A)

1



10

The maximal gauge for three-phase plug

Figure 6(16A)

1



11

The minimal gauge for three-phase plug

Figure 6(25A)

1



12

The minimal gauge for three-phase plug

Figure 6(32A)

1



13

three-phase plug check gauge

Figure 7(16A)

1



14

three-phase plug check gauge

Figure 7(25A)

1



15

three-phase plug check gauge

Figure 7(32A)

1



16

handle



15





More and detailed inforamtion, please email us or call us, we will at your service!
