|Place of Origin:||China|
|Certification:||Third Party Calibration Certificate|
|Minimum Order Quantity:||1 set|
|Delivery Time:||10 days|
|Payment Terms:||D/A, L/C, D/P, T/T, Western Union, MoneyGram|
|Drop Height:||30～150cm,||Test Area:||800mm×800mm×1000mm|
|Arms Open Method:||Electrical Drive|
Single Arm Impact Testing Machine,
1500mm Impact Testing Machine

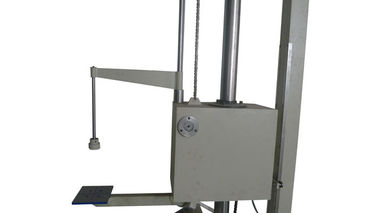

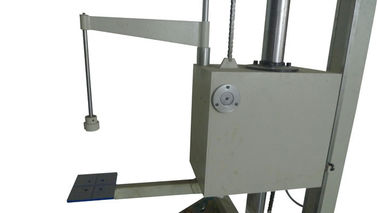

1500mm Single Arm Electrical Drop Tester Carton Package Drop Testing Equipment ISO 2248
The single arm drop test machine named single wing drop test bench or carton drop test machine, it is mainly used to test the reliability of the packaging products, to assess the received influence degree of drop impact during the actual transportation, loading and unloading process, so as to evaluate the rationality of packaging design in the course of handling the impact strength.
The carton package can be angular face multiple range dropped, the arm of the test equipment will rapid downward movement and then rotate during the falling action, to guarantee the free separation of the arm and package, and achieve the free drop of the package.
The angle error is less than 5 °, the impact vibration is small, the test equipment is stable and reliable.
|Drop height||300～1500mm, can be customized|
|Drop height error||≤2%|
|The supporting plate and the impact panel parallel error||≤2°|
|The angle error during the specimen falling down||≤3°|
|Single wing area (mm²)||210×150|
|Floor area (mm²)||1200×1700|
|Test area (mm)||800×800×1000|
|Weight bearing (KG)||100|
|Height adjustment||motor drive|
|Arms open method||Electrical drive|
|The main volume (mm)||2010 x 1700 x 1200|
|The control box volume (mm)||170 x 350 x 400|
|Testing machine weight (Kg)||about 600Kg|
|Motor power (W)||500|
|Application of standard||ISO2248-1972 (E), GB4857.5 - 92|
HongTong has a strong ability in Design and Manufacturing, also we can offer best solutions and customized products to meet your needs. You are welcome here if any inquiries, we will try our best to support you!
