| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9926 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
| Test Stations: | 1 Station | Load: | 4N |
|---|---|---|---|
| Test Time: | 1-999999 | Rate Of Abrasion: | 30 Movements Per Minute |
| Working Stroke: | 9mm | Warranty: | 1 Year |
| Name: | Insulation Sleeves Of Plug Pins Abrasion Test Apparatus | Test Sample: | Insulation Sleeve Of Plug Pins |
| High Light: | IEC 60884-1 Plug Socket Tester,Insulation Sleeves Plug Socket Tester |
||

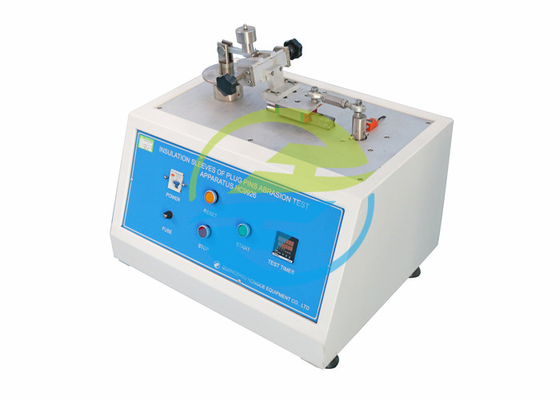

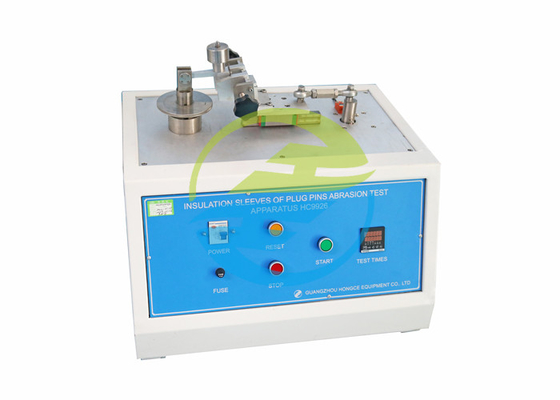

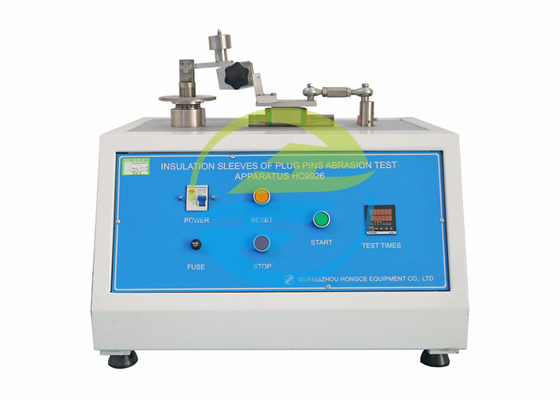

IEC 60884-1 Plug Socket Tester, Insulation Sleeves Of Plug Pins Abrasion Test Apparatus
Standard of Plug Socket Tester:
IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 24.7, figure 28.
Application of Plug Socket Tester:
This device is use for test the abrasion resistance strength of insulation sleeve of plug pins.
Test sample of Plug Socket Tester:
Insulation Sleeve of plug pins.
Feature:
Device consists of a horizontal placement of the beam and the linear movement of the fixture seat, wherein, beam ends with diameter 1mm short steel wire is bent into a U-shaped head (U shape of two vertical fixed on the beam), wire U-shaped bottom is 6mm linear part. Compress the 6mm hemline on the plug insulation sleeve, the motor drives the mounting bolt clamp seat to do reciprocating movement back and forth, conducting the abrasion test to insulation sleeve of plug pins.
Parameters:
| Parameter Name | Parameter Data |
| Power supply | AC220V, 50Hz |
| Station | Single station |
| Test time | 1-999999, preset |
| Rate of abrasion | 30±1 movements per minute |
| Load | 4-0.1N |
| Working stroke | 9mm |
