Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26

Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26

  • Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26
  • Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26
  • Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26
  • Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26
  • Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26
  • Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26
Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third party calibration(cost additional)
Model Number: PH-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 10 days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Pendulum Length: 1000mm External Diameter: 9mm
Thickness: 0.5mm Material: Steel
High Light:

electric socket tester

,

electrical plug tester

Low Energy Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26





Product details:

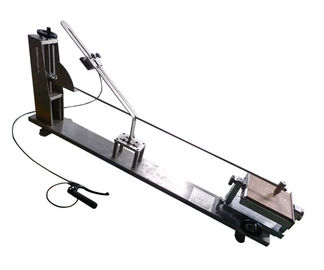

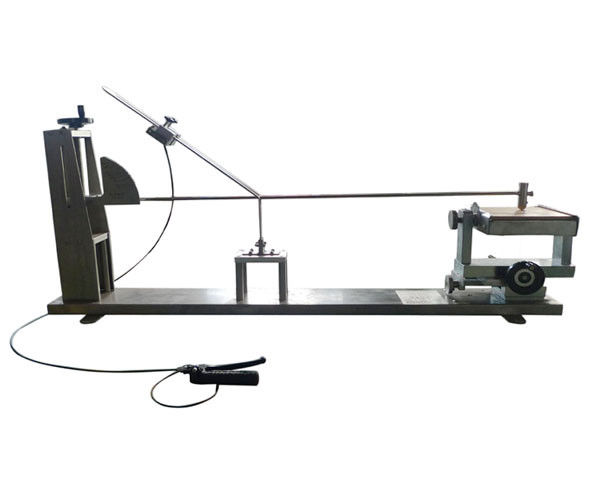

The low energy vertical pendulum hammer impact tester is designed and manufactured according to IEC60068-2-75 IEC0884-1fig22-26. It is used for the mechanical strength test of household and similar use of plug socket, some electrical accessories like switch and shroud etc. The test apparatus consists basically of a pendulum rotating at its upper end in such a way as to be kept in a vertical plane. The axis of the pivot is at 1000㎜ above the measuring point. This device is for the energy impact test (the energy is ≤ 1J).


Technical parameters:

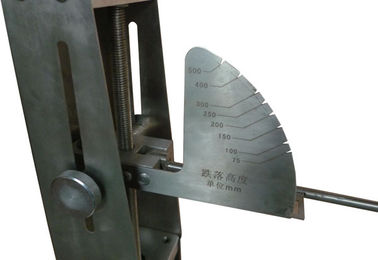

Pendulum

Length 1000mm
External diameter 9mm
Thickness 0.5mm
Material Steel
Weight 100±1g

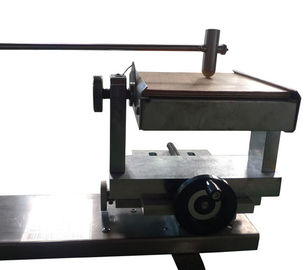

Mounting bracket:

weight: 10±1 kg; it is well-set and the Horizontal direction and the vertical direction can be adjusted.

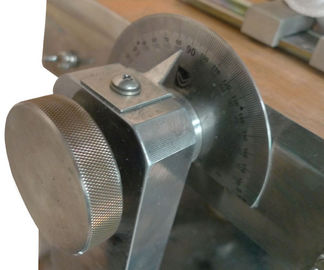

The whole bracket can be rotated 90°through the rotation axis.

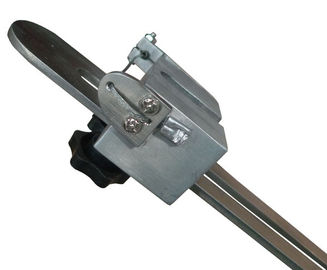

Striking element:

weight:150g and 200g.





 Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26 0Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26 1

Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26 2
Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26 3
