| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third Party Calibration Certificate |
| Model Number: | SLT-3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/month |
| Standard: | IEC60884-1, IEC61058-1, IEC60669-1 | Work Station: | 6 Work Stations |
|---|---|---|---|
| Operation Interface: | 7 Inch Color LCD Touch Screen | Control System: | PLC |
| High Light: | electric socket tester,electrical plug tester |
||

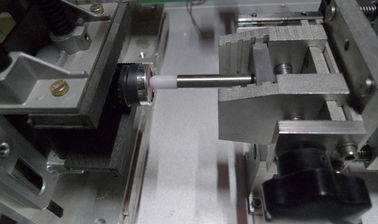

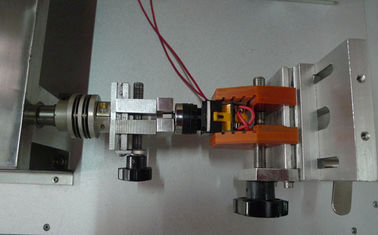

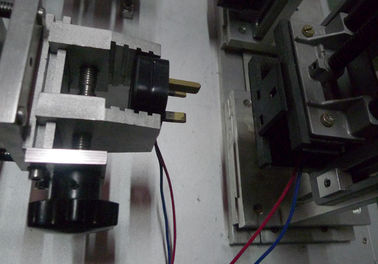

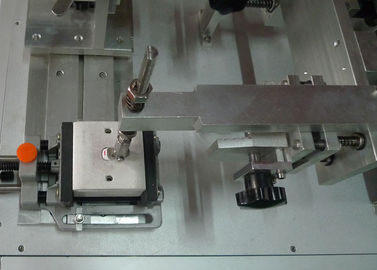

Plug-Socket Switch Making And Breaking Durability Tester
The test machine is designed and manufactured according to IEC60884-1, IEC61058-1, IEC60669-1standards and etc. It is applicable for household and similar fixed electrical installations’ breaking
capacity and normal operation life test, also suitable for testing household and similar usage plug/
socket’s breaking capacity and normal operation life . The purpose is assessing whether the switch is able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the
contact points has adhesion phenomenon,
long-term closed or disconnected phenomena, to examine whether the test samples excessive worn and have other harmful consequences. It is special test equipment for switches and plug-sockets electrical endurance test.
Technical Parameters
|
Parameters Name |
Parameter Data |
|
|
Power |
AC110V,60Hz or AC220V, 50Hz |
|
|
Work station |
6 work stations, three linear stations, three rotary station |
|
|
Operation interface |
7 inch color LCD touch screen |
|
|
Drive mode |
Servo motor |
|
|
Control system |
PLC |
|
|
Test times |
0～999999 times, can be preset |
|
|
Conduction time |
0～999.9s, can be preset |
|
|
Break time |
0～999.9s, can be preset |
|
|
Test angle |
0-360°, can be preset |
|
|
Numbers of test angles |
Angle 1~15 , can be preset |
|
|
Test stroke |
Linear: 0 ~ 100mm, adjustable Rotation: 1~359°, adjustable |
|
|
Test speed |
Linear: 10 ~ 200mm/s, adjustable Rotation: 0 ~ 360° /s, adjustable |
|
|
Test environment |
Atmospheric pressure 80 ~ 106kpa; Ambient temperature 5 ~ 40℃; Relative humidity (20 ~ 90)%RH; Use place: no violent shaking, no vibration, no electromagnetic interference, no dust, noexplosive or corrosive gas, good heat dissipation |
|
|
Dimensions |
L*W*H=1260mmx800mmx600mm |
|
|
Weight |
125KG |
|
