IEC60669-1 Clause 19.3 Self Ballasted Lamp Load Box Power Meter Range 0-9KW

IEC60669-1 Clause 19.3 Self Ballasted Lamp Load Box Power Meter Range 0-9KW

  • IEC60669-1 Clause 19.3 Self Ballasted Lamp Load Box Power Meter Range 0-9KW
  • IEC60669-1 Clause 19.3 Self Ballasted Lamp Load Box Power Meter Range 0-9KW
  • IEC60669-1 Clause 19.3 Self Ballasted Lamp Load Box Power Meter Range 0-9KW
IEC60669-1 Clause 19.3 Self Ballasted Lamp Load Box Power Meter Range 0-9KW
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: HK1503
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Name: Self Ballasted Lamp Load Box Voltage Meter: 0 ~ 300V
Power Meter: 0~9KW Stations: 3 Stations
Input Voltage: Adjustable Rated Current: 10,13,16,20A Optional
Origin: Guangdong, China Warranty: 1 Year
High Light:

9KW Self Ballasted Lamp Load Box

,

IEC60669-1 Self Ballasted Lamp Load Box

IEC60669-1 Clause 19.3 Self Ballasted Lamp Load Box, Power Meter Range 0-9KW



After these tests, it shall also be possible to make and break the switch by hand in the test circuit and the specimen shall not show:
– wear impairing further use;
– discrepancy between the position of the actuating member and that of the moving contacts, if the position of the actuating member is indicated;                Switch Tester
– deterioration of the enclosures, insulating lining or barriers to such an extent that the switch cannot be further operated or that it no longer complies with the requirements of Clause 10;
– loosening of electrical or mechanical connections;
– seepage of sealing compound;                                         Switch Tester
– relative displacement of the moving contacts of switches of pattern numbers 2, 3 or 6/2.
Breakage of the replaceable pull cord not involving the part entering the cord-operated switch shall not be considered a failure to pass the test.



Standard: IEC60669-1:2017 clause 19.3

Application: This device is suitable for breaking capacity and normal operation life test to fixed switches for house held and similar purpose, especially suitable for self ballast lamp switch electric stress and thermal stress test when control the LED circuit. To verify whether the switch can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.

Test sample: Self Ballast Lamp(SBL) Switches

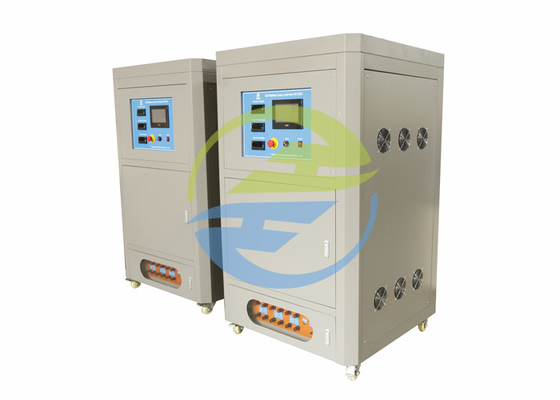

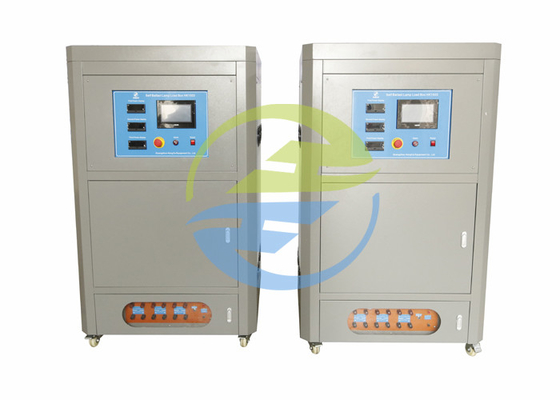

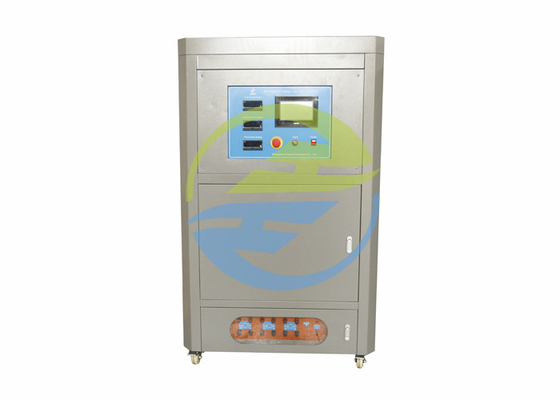

Feature: Dimension about: wide (800mm) * Deep (800mm) * high (1800mm). The frame is blue and the side panels are light white. Above the front is the operation control panel. On the control there are power switch, product test voltage and power display instruments, alarms, touch screen, etc., there are resistors and capacitor load combinations, AC contactors, relays. There is a terminal under the box, which is connected to the product in the testing machine through the wire, and outputs current and provides load in the inspection process.

The load device has been preset with standard load conditions before shipment. As long as the test voltage is adjusted to 250V~, the operator presses the switch button with the same rated current as the switch to be tested, and its rated power, impulse waveform, Ipeak and I2t meet the corresponding requirements of the standard.

There are 3 stations and 3 switches can be tested at the same time.                   Switch Tester

With metering mode and metering dedicated port, built-in 90-degree closing plate, easy to measure the output waveform, Ipeak current value and I2t energy value, fully meet the standards for equipment measurement requirements.

The device is equipped with a voltage regulator, which can reach the voltage of 250V required by the switch test without the need of an external voltage regulator.

Parameters:

NO. Item Parameter
1 Power supply single phase AC220V±5%/50Hz
2 Voltage meter 0 ~ 300V, precision 0.5, digital display
3 Power meter 0~9KW, precision 0.5, digital display
4 Output channel 3
5 preset switch rated voltage 250V
6 rated current 0A, 13A, 16A, 20A optional (can be customized test voltage and Test current)
7 input voltage Adjustable, to ensure that the test voltage is 250V
8 All operating parameters are set at 250V~, including W, Ipeak, I2t, and inrush current waveforms
9 Each device provides a closing control device (touch screen select "measurement" function),each time is in the 90 degree angle conduction, this function can be used for initial equipment calibration and measurement verification.
10 With long / long protection function, the protection time of 1 ~ 99S can be preset, shutdown alarm protection.
11

Use environment: temperature 5 ~ 40 °C, relative humidity 20 ~ 90% RH, atmospheric pressure 80 ~ 106kpa. No severe vibration, no electromagnetic interference, no dust, corrosive gas, good heat dissipation.





Picture for reference:

IEC60669-1 Clause 19.3 Self Ballasted Lamp Load Box Power Meter Range 0-9KW 0
