Electrical Appliance Temperature Rise Test Accessories IEC 60884 Clause 19

Brand Name:	HongCe
Model Number:	HT-TRC
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

IEC/ISO 1705(cost additional)

Standard:

IEC60884

Material:

Brass

Including:

Dark Cartoner, Test Plugs And Clamp Elements

Packaging Details:

Carton Box

Highlight:

socket tester

electrical plug tester

Product Description

Electrical Appliance Temperature Rise Test Accessories IEC 60884 Clause 19

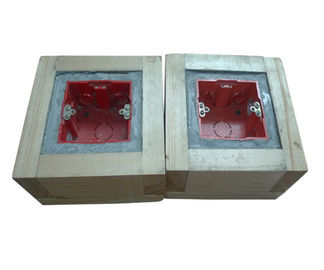

Temperature Rise Dark Cartoner

The item is designed and manufactured according to IEC60884 clause 19, it is applied for electrical

appliance

concealed accessories temperature rise test.

Electrical Appliance Temperature Rise Test Accessories IEC 60884 Clause 19 0

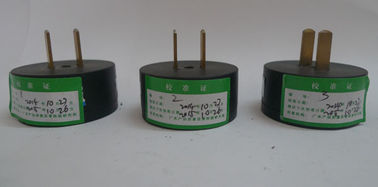

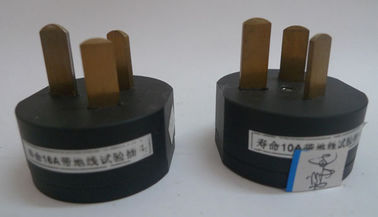

Temperature Rise Test Plugs

Product information:

The temperature rise testing of the sockets are required test plugs, the test plugs are made of brass,

and shall

have the required minimum size, they are designed and manufactured according to IEC60884,

GB1002-2008.

Main configurations:

1,One piece 10A two-pole test plug, one piece three-pole test plug (Universal 6A and 10A );

2,One piece 16A three-pole test plug

Electrical Appliance Temperature Rise Test Accessories IEC 60884 Clause 19 1

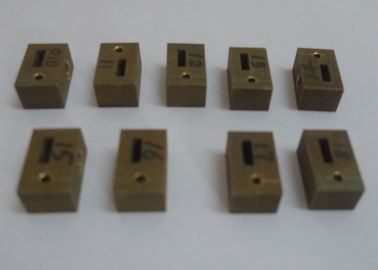

Clamp Elements of Plug Temperature Rise Test

Two sets of brass clamp elements, one set with square hole 7.2mm* 2.3mm, the other set with square hole

8.9mm*2.6mm.

Please refer to the below table for the hole sizes of temperature clamp elements:

Item	Rated Current	Hole Size(B*L)	Remark
Single phase two-pole plug (Two flat)	Universal 6A and 10A	7.2*2.3
Single phase two-pole grounded plug (Three flat)	Universal 6A and 10A	7.2*2.3
Single phase two-pole grounded plug (Three flat)	16A	8.9*2.6

Electrical Appliance Temperature Rise Test Accessories IEC 60884 Clause 19 3
