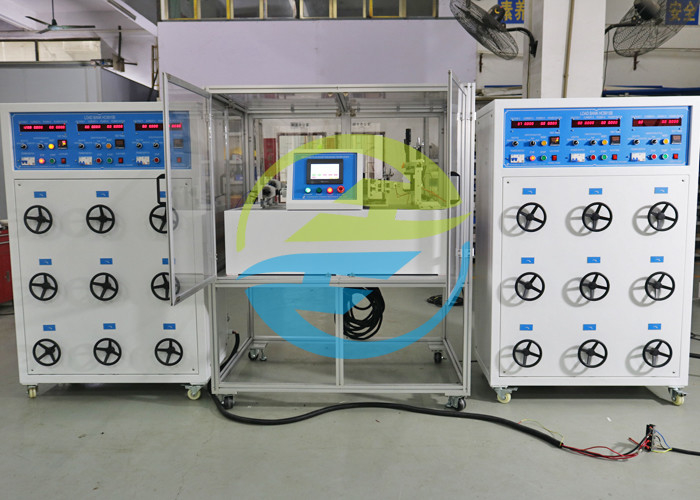

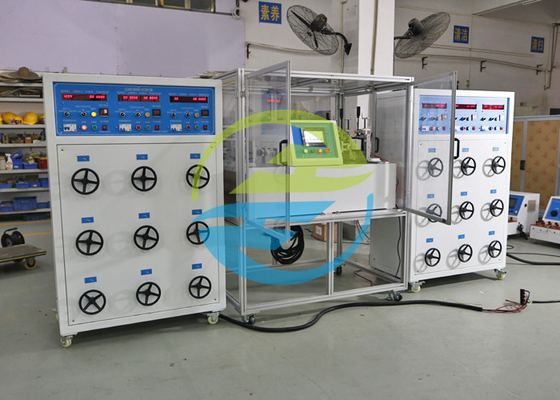

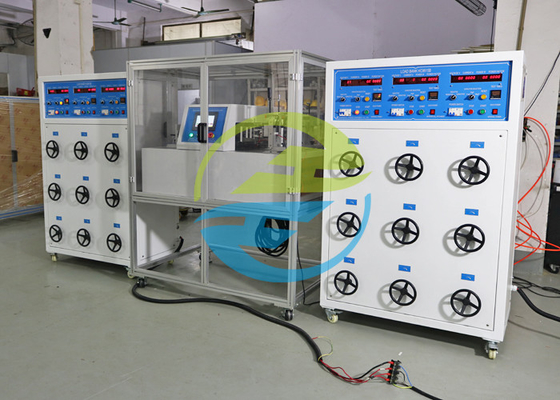

IEC60669-1 Switch Plug Socket Endurance Tester And Load Bank Set 6 Stations

IEC60669-1 Switch Plug Socket Endurance Tester And Load Bank Set 6 Stations

  • IEC60669-1 Switch Plug Socket Endurance Tester And Load Bank Set 6 Stations
  • IEC60669-1 Switch Plug Socket Endurance Tester And Load Bank Set 6 Stations
  • IEC60669-1 Switch Plug Socket Endurance Tester And Load Bank Set 6 Stations
IEC60669-1 Switch Plug Socket Endurance Tester And Load Bank Set 6 Stations
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HC9914 + HC9915B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Standard: IEC 60884-1 Clause 20, 21, CISPR 14-1, IEC 61058-1, IEC60669-1 Etc.
Application: Switch Plug Socket Endurance Test Stations: 3 Liner Stations; 3 Rotating Stations
Clamp: XYZ Three Axis Clamp Load Ports: 6 Ports
Test Times: 0-999999, Preset Liner Stroke: 0-100mm, Preset
High Light:

Switch Plug Socket Endurance Tester

,

6 Stations Plug Socket Endurance Tester

IEC60669-1 Switch Plug Socket Endurance Tester And Load Bank Set, 6 Stations​



Introduction:

The plug and socket endurance testing machine is designed according to the requirements of the corresponding clauses in IEC60884-1 and etc., which is used to assess the life of plugs and sockets for household and similar purposes. Connected with the load cabinet, the electrical life test of the plug and socket can be checked according to the standard. It is a necessary test machine for the quality inspection of products by the manufacturer of electrical accessories, the manufacturer of household appliances and the quality inspection department.
By changing the fixture, this machine can do the life test of the Button switch, rocker switch, toggle switch, rotary switch, and other switches, and plug and socket.
This load cabinet can output resistive, inductive and capacitive loads. The test device has the advantages of beautiful appearance, reasonable layout, simple operation and convenient maintenance.



Switch Plug Socket Tester For Endurance Test:



Standard: IEC 60884-1 2013 clause 20, 21, CISPR 14-1, IEC 61058-1, IEC60669-1 etc.

Application: This device is used for household and similar purpose fixed electrical appliance switch, plug and socket, coupler for on-off ability, breaking capacity and normal operation life test. To verify whether the switch, plug or socket can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.

Test sample: Household or similar purpose switches, plugs, sockets, couplers

Feature: Using aluminum alloy frame, stainless steel sealing plate, driven by the servo motor, precision ball screw and synchronous belt drive, 7 inch color touch screen operation and powerful digital display function, PLC control system. Can perform lift test to button switch, toggle switch, rocker switch, rotary switch, plug and socket. With corresponding control system, can perform loading test with load(resistive, inductive and capacitive). Preset test times, conduction current time (opening time), test speed, test trip and rotation angle (up to 15 angles). With current display function, can display the conducting current.

Parameters:

Model HC9914
Power supply AC 220V±10% 50Hz
Operation interface 7 inch color LCD touch screen
Drive mode servo motor + ball screw / timing belt or pneumatic
Control system PLC control
Stations

6 Stations:

3 liner stations;

3 rotating stations.

Synchronization control

Test sample Button switch, rocker switch, toggle switch, rotary switch, plug and socket
Test times 0-999999, preset
Connecting time 0-99.9s, preset
Liner stroke 0-100mm, preset
Rotate angle 0-360°, preset
Test speed

15 times per min

7.5 times per min

30 times per min

Clamp XYZ three axis clamp

Test mechanism

(multi)

Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism
Load ports 6 ports

Dimension

Weight

WDH=1090*800*700mm

147kg



Load Bank HC9915B:



Standard: IEC 60884-1 2013 clause 20 and 21, IEC 60950-1, IEC 60598-1, IEC61058-1, IEC60669-1 and so on

Application: This device is used for household and similar purpose fixed electrical appliance switch, plug and socket, coupler for on-off ability, breaking capacity and normal operation life test.

Test sample: Household or similar purpose switches, plugs, sockets

Feature: This device is with blue framework and gray cover. The top of this apparatus is the operation control panel on which there are switches for controlling power supply, for the electric capacity conversion and for the load type conversion. There are also the displaying meters of connecting current and voltage as well as power, the buttons of start and stop, alarm, the status indicator light and so on. Below are the according knobs for output voltage adjustment, for current adjustment and for inductance adjustment. There are three stations, each station has the function of resistive, inductive and capacitive Load test. The kind of load test can be chosen by the transferring switch. The load box inside is cooled by the strong wind convection. There are terminals below the load box through which the load box can be connected with the switch and plug-socket endurance tester using the wire. During the process of test, the equipment outputs the current and voltage as well as power.

Parameters:

  1. Power supply: 3phase 4 wires AC 380V 50Hz
  2. Stations: 3 stations
  3. Digital voltage meter: 0~300V, accuracy: ±0.5%
  4. Digital ampere meter: 0~30A, accuracy: ±0.5%
  5. Digital power meter: 0~10KW, accuracy: ±0.5%
  6. Digital power factor meter: 0.3~0.98, accuracy: ±0.5%
  7. Load method: Resistive, inductive and capacitive load. Three in one, Convertible
  8. Capacity load: 70uf,140uf,7.3uf can be chosen
  9. Load output: Each power and interval power can be chosen
  10. Counter: 0~999999, preset
  11. Load capacity: 3*10KVA
  12. Max. of the output current: 30A,when it exceeds 32A, it stopped automatically
  13. Max. of the output voltage: 300V, when it exceeds 305V, it stopped automatically
  14. Working environment: 80~106kpa, 5~40℃, (20~90)%RH

15. Using place: No violent shaking, without electromagnetic interference and dust, no explosive or corrosive gas.
