IEC 60884-1 Power Cord Flexing Tester 10-60rpm Flexing Rate 6 Working Stations

IEC 60884-1 Power Cord Flexing Tester 10-60rpm Flexing Rate 6 Working Stations

Brand Name:	HongCe
Model Number:	HC9919
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Name:

Power Cord Flexing Tester

Standard:

IEC60884-1, UL817, VDE0620

Warranty:

1 Year

Weight:

20N, 10N, 6 Each

Station:

6 Stations

Breaking Indication:

Indicator Display

Dimension:

1m*0.5m*1.1m

Flexing Rate:

10~60 Rpm (adjustable)

Packaging Details:

Plywood

Highlight:

IEC 60884-1 Power Cord Flexing Tester

60rpm Power Cord Flexing Tester

6 Stations Power Cord Flexing Tester

Product Description

IEC 60884-1 Power Cord Flexing Tester 10-60rpm Flexing Rate 6 Working Stations

Standard: IEC 60884-1 2013 clause 23.4 and figure 21, UL817, VDE0620

Application: This device is used for test the flexing properties of non-rewirable plugs (terminals) and non-rewirable portable socket-outlets, check the fatigue strength of the power cable and jacket.

Test sample: Non-rewirable plugs and non-rewirable portable socket-outlets Plug Socket Tester

Feature: The speed reducing motor controls the crank sliding block structure to do the reciprocating motion, the left and right flexing angles are adjusted by manual scale, and angle automatic adjustment touch screen model can be customized.

Tester will automatic shutdown when preset test times completed. Plug Socket Tester

Parameters:

NO	Name	Parameter
1	Power supply	AC220V 50Hz Plug Socket Tester
2	Flexing angle	Swivel angle on either side for 45° , 60°, or 90°. Adjustable
3	Flexing rate	10~60rpm (frequency conversion), the default 60 times /min
4	Weights	20N, 10N. 6 each(UL 113g and 284g weights can be customized)
5	Test station	6 stations, with 6 sets of clamp device
6	Test times	one general counter, 6 individual counters. 0~999999 preset
7	Mechanical theory	The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action
8	Cord broken indicator	Φ25 red indicating light
9	Dimension	L1000mmW500mmH1100 mm Plug Socket Tester

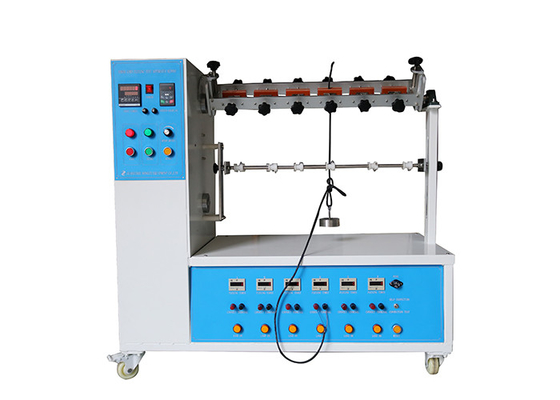

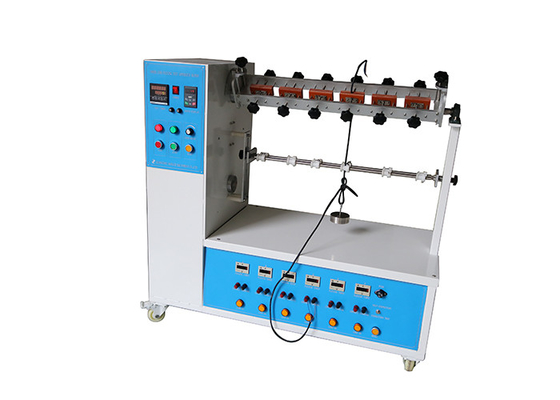

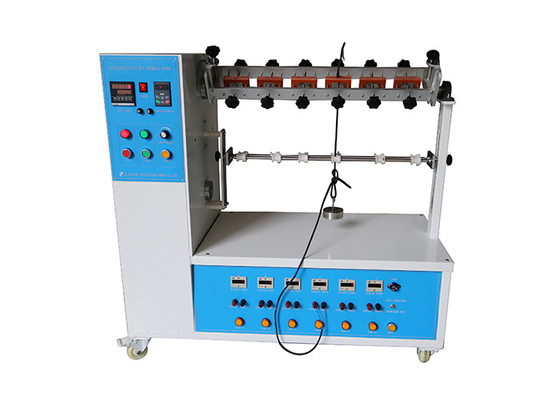

Picture for reference:

IEC 60884-1 Power Cord Flexing Tester 10-60rpm Flexing Rate 6 Working Stations 0

IEC 60884-1 Power Cord Flexing Tester 10-60rpm Flexing Rate 6 Working Stations 1

IEC 60884-1 Power Cord Flexing Tester 10-60rpm Flexing Rate 6 Working Stations 2
