| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HX9801 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 25 days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| TEST OBJECT: | Insulating Material | STANDARD: | IEC 60065-1, IEC 60950-1 |
|---|---|---|---|
| TEST: | Dielectric Strength Test | STATIONS: | 1 |
| METAL BARS: | 2 Pc | MASS OF METAL BARS: | 100g And 50g |
| DIAMETER OF METAL BARS: | Dia. 5mm And Dia. 6.8 | DIMENSION: | 255mm*120mm*200mm |
| High Light: | electric socket tester,socket tester |
||
IEC60065 Figure 6 Plug Socket Tester Dielectric Tensile Strength Testing Machine With Metal Bar
Standard
Confirm to IEC60950 Safety of information technology equipment, IEC60065-1 Audio, video and similar electronic apparatus-Safety requirements, UL1310 Class 2 Power Units clause 40.2.
Application
It is used to test the dielectric strength of the insulating material.
Test sample
Insulating material.
Feature
equipped with two test bars, anable this device to conduct different tests of different standards.
The clamp is applicable of two kinds: Ф5-100 andФ6.8-50. For different testing samples, different metal bar and testing bar are adopted. This testing apparatus is equipped with two kinds of metal bar. They are separately 100g and 50g.
This testing device conforms to the IEC60065 figure 6,UL1310 clause 40.2. It is used to test the dielectric strength of the insulating material. The clamp is applicable of two kinds: Ф5-100 andФ6.8-50. For different testing samples, different metal bar and testing bar are adopted. This testing apparatus is equipped with two kinds of metal bar. They are separately 100g and 50g.
Technical parameters
| Test object | Insulating materials of audio video apparatus |
| Reference standard | IEC 60065-1, IEC 60950-1 |
| Test | dielectric strength test |
| Station | 1 |
| Metal bars | 2 pc |
| Mass of metal bars | 100g and 50g |
| Size of metal bars | Ф5-100 and Ф6.8-50 |
| Dimension | 255mm*120mm*200mm |

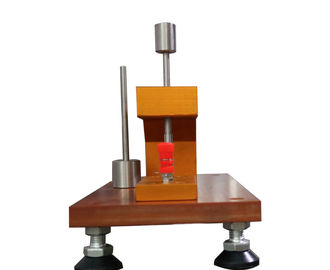

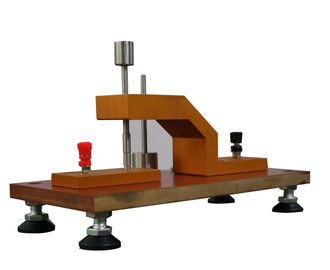

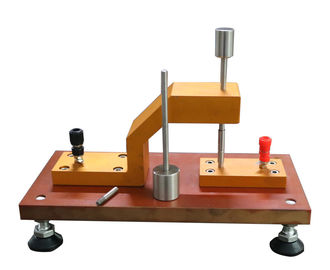

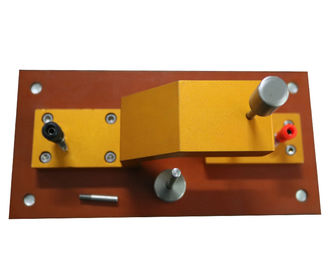

Picture for reference
