IEC60884 Figure 28 Bolt Insulation Sleeves Plug Socket Tester

IEC60884 Figure 28 Bolt Insulation Sleeves Plug Socket Tester

  • IEC60884 Figure 28 Bolt Insulation Sleeves Plug Socket Tester
  • IEC60884 Figure 28 Bolt Insulation Sleeves Plug Socket Tester
  • IEC60884 Figure 28 Bolt Insulation Sleeves Plug Socket Tester
  • IEC60884 Figure 28 Bolt Insulation Sleeves Plug Socket Tester
  • IEC60884 Figure 28 Bolt Insulation Sleeves Plug Socket Tester
IEC60884 Figure 28 Bolt Insulation Sleeves Plug Socket Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibartion Certificate(cost additional)
Model Number: IN-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Station: Single Station Test Times: 1~999999, Preset
Rate Of Abrading: 30 Movements Per Minute Load: 4N
High Light:

electric socket tester

,

socket tester

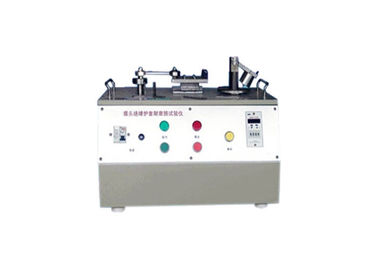

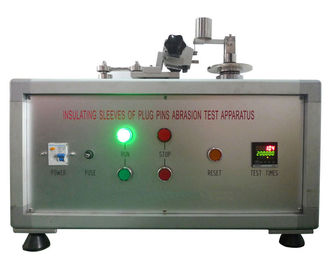

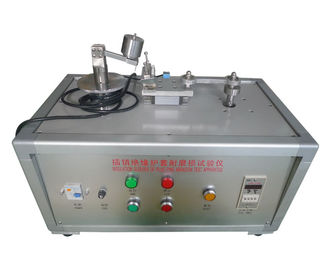

Insulation Sleeves of Plug Pins Abrasion Test Apparatus



Product details:



The test apparatus is designed and manufactured according to the standard requirement of IEC884 Figure 28. It is used to test the abrasion resistance of the insulating bushing of the bolt.

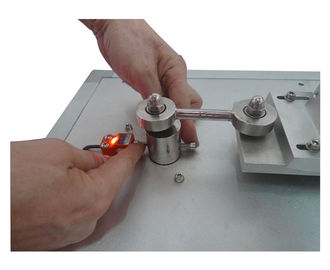

This device comprises a horizontally disposed beam, which is pivoted about its centre point. A short length of steel wire, 1 mm in diameter and bent into a U-shape, the base of the U being straight, is rigidly attached, at both ends, to one end of the beam, so that the straight part projects below the beam and is parallel to the axis of the beam pivot.

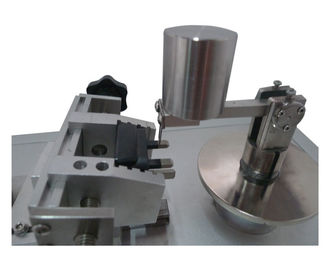

The plug is held by a suitable clamp in such a position that the straight part of the steel wire rests on the plug pin, perpendicular to it. The pin slopes downwards at an angle of 10° to the horizontal. The beam is loaded so that the wire exerts a force of 4 N on the pin.The plug is moved backwards and forwards in a horizontal direction in the plane of the axis of the beam, so that the wire rubs along the pin. The length of the pin thus abraded is approximately 9 mm, of which approximately 7 mm is over the insulating sleeve. The number of movements is 20 000 (10 000 in each direction) and the rate of operation is 30 movements per minute. The test is made on one pin of each specimen.


After the test, the pins shall show no damage which may affect safety or impair the further use of the plug, in particular, the insulating sleeve shall not have punctured or rucked up.





Technical Parameters:



Power Supply

220V 50Hz or 115V 60Hz

Number of Test

1~999999

Rate of Abrading

30±1 movements per minute

Load

4-0.1N

Number of Test Station

1(two working stations can be customized)

Conforms to standard

IEC884Figure28,VDE0620 Bile 29,EN50075Fig9,BS1363 Fig 9

IEC60884 Figure 28 Bolt Insulation Sleeves Plug Socket Tester 0





About us:



Guangzhou HongCe Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
