Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: VPP-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Impact Energy: 0~90N/cm Adjustable Scale: 2N/cm
Standard: ISO4532 Material: Stainless Steel
High Light:

impact test equipment

,

impact test machine

Vitreous and Porcelain Enamels Pistol Tester , Enamels Pistol Tester





Product details:



This tester is for the pistol test of vitreous and porcelain enamels in accordance with the standard requirement of ISO 4532. It is used to judge the impact resistance of the vitreous and porcelain enamels.

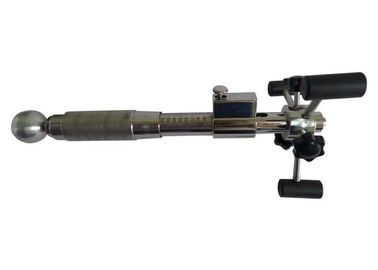

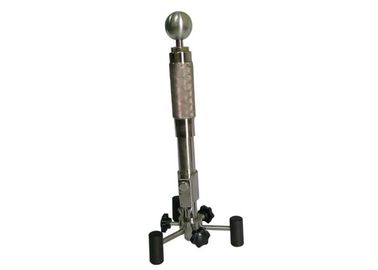

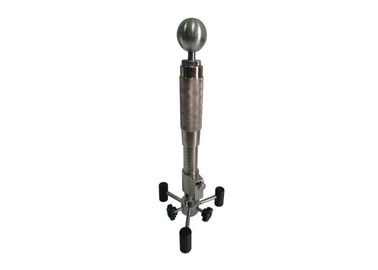

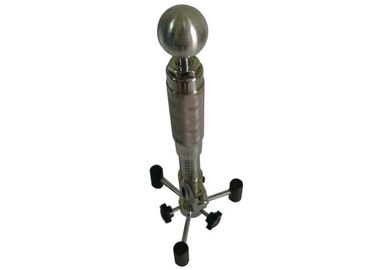

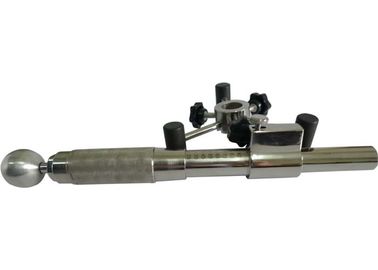

As the below picture shown, this test apparatus is made up with a striking bolt with a 5 mm steel ball tip which is shot once against the surface under test by means of a pressure spring (100 mm long, unloaded)

This device is a portable handheld apparatus which can be stored in any suitcase. Thus avoid the inconvenience of disassembly and transportation. It can be used outside of the laboratory and workshop. It is suitable for factory production management testing. This mechanical equipment can be continuously adjusted from 0~90 N/cm. And the minimum speed can be adjusted precisely to 0.5 N/cm. Combined with custom design A-frame, this device is not only for the test of the samples’ surface but also for the samples’ edge.



Standard Confirm to ISO4532
Application This device is suitable for pistol test to determination of the impact resistance of vitreous and porcelain enamels and other enameled articles
Test sample Vitreous and porcelain enamels and other enameled articles
Feature

Vitreous and porcelain enamels - Determination of the resistance of enameled

articles to impact - Pistol test. This device is a portable handheld instrument that can be stored in a suitcase, to avoid the disassembly, transportation and many other problems, can be tested in laboratory, outside the workshop, suitable for the factory production management test. This device is completely mechanical instruments, strength is in the range of 0~90 N/cm continuously adjustable, scale 2 N/cm; with specially designed triangle bracket, can be tested on the uneven surface samples, and can test the edge part of the sample also



Technical parameters:

Impact energy 0~90N/cm adjustable
Scale 2N/cm
Standard ISO4532
Equipped with triangle bracket



Vitreous and Porcelain Enamels Pistol Tester , Enamels Pistol Tester 0

Vitreous and Porcelain Enamels Pistol Tester , Enamels Pistol Tester 1
