Pendulum Hammer Test Apparatus
Product details:

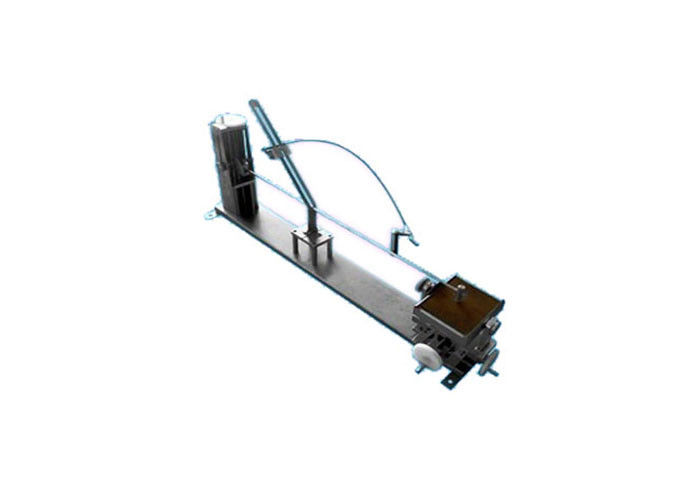

This testing device conforms to many standard requirements like IEC60068-2-75 IEC0884-1fig22-26. It is used for the mechanical strength test of Household and similar use of plug socket, some electrical accessories like switch and shroud etc. The test apparatus consists basically of a pendulum rotating at its upper end in such a way as to be kept in a vertical plane. The axis of the pivot is at 1000㎜ above the measuring point. This device is for the energy impact test (the energy is no more than 1J).
Technical parameters:
Pendulum: Length: 1000mm; external diameter: 9mm; thickness: 0.5mm; material: steel; weight: 100±1g
Mounting bracket:weight: 10±1 kg; it is well-set and the Horizontal direction and the vertical direction can be adjusted. The whole bracket can be rotated 90°through the rotation axis.
Striking element: 150g and 200g.
The feature of striking elements
|
energy/J |
≤1 ±10% |
2 ±5% |
5 ±5% |
10 ±5% |
20 ±5% |
50 ±5% |
|
equivalent mass±2%kg |
0.25(0.2) |
0.5 |
1.7 |
5 |
5 |
10 |
|
material |
nylon |
steel |
||||
|
R/mm |
10 |
25 |
25 |
50 |
50 |
50 |
|
D/mm |
18.5(20) |
35 |
60 |
80 |
100 |
125 |
|
f/mm |
6.2(10) |
7 |
10 |
20 |
20 |
25 |
|
r/mm |
- |
- |
6 |
- |
10 |
17 |
|
l/mm |
|
|||||
The height of falling
|
energy/J |
0.14 |
0.2 |
(0.3) |
0.35 |
(0.4) |
0.5 |
0.7 |
1 |
2 |
5 |
10 |
20 |
50 |
||
|
equivalent mass /kg |
0.25 |
(0.2) |
0.25 |
(0.2) |
0.25 |
(0.2) |
(0.2) |
0.25 |
0.25 |
0.25 |
0.5 |
1.7 |
5 |
5 |
10 |
|
The height of falling±1%mm |
56 |
(100) |
80 |
(150) |
140 |
(200) |
(250) |
200 |
280 |
400 |
400 |
300 |
200 |
400 |
500 |
IK code and the corresponding impact energy
|
IK code |
IK00 |
IK01 |
IK02 |
IK03 |
IK04 |
IK05 |
IK06 |
IK07 |
IK08 |
IK09 |
IK10 |
|
Impact energy/J |
a |
0.14 |
0.2 |
0.35 |
0.5 |
0.7 |
1 |
2 |
5 |
10 |
20 |
