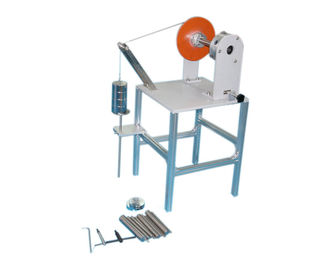

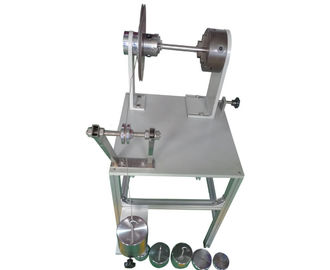

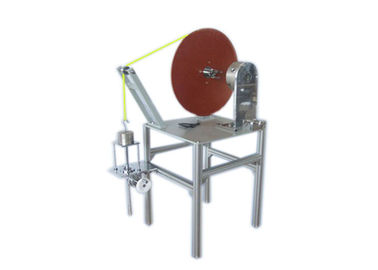

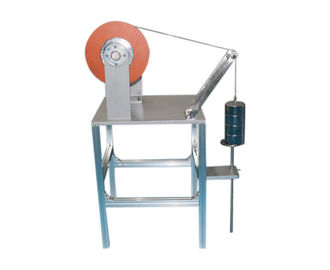

IEC60598-1 Clause 4.12.5 Plug Socket Tester Screwed Glands Test Equipment

IEC60598-1 Clause 4.12.5 Plug Socket Tester Screwed Glands Test Equipment

  • IEC60598-1 Clause 4.12.5 Plug Socket Tester Screwed Glands Test Equipment
  • IEC60598-1 Clause 4.12.5 Plug Socket Tester Screwed Glands Test Equipment
  • IEC60598-1 Clause 4.12.5 Plug Socket Tester Screwed Glands Test Equipment
  • IEC60598-1 Clause 4.12.5 Plug Socket Tester Screwed Glands Test Equipment
IEC60598-1 Clause 4.12.5 Plug Socket Tester Screwed Glands Test Equipment
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: SG-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Weights: 20N, 40N, 50N, 60N Weight With Hook Diameter Of The Disc: 250mm
Metal Glands: 6.25, 7.5, 10 (N.m) Standard: IEC 60598-1 Clause 4.12.5
High Light:

socket tester

,

electrical plug tester

Screwed Glands Tester





Product details:

The device is used to check screwed glands, and conform to the IEC60598-1 clause 4.12.5. Screwed glands shall be fitted with a cylindrical metal rod having a diameter equal to the nearest whole number of millimetres below the internal diameter of the packing. The glands shall then be tightened by means of a suitable spanner, the moment shown in following Table being applied to the spanner for 1 min.





Standard: IEC 60884-1 2013 clause 24.6, IEC 60598-1 clause 4.12.5

Application: This device is use for test the torque resistance strength of screwed gland of lamps and similar appliances.

Test sample: Screwed gland of lamps and similar appliances.

Feature: Floor type support, lifting weights mechanism drive turntable to achieve torque test.

Parameters:

  • Cylindrical metal rod: Ф5, Ф7, Ф9, Ф10, Ф12, Ф14, Ф16, Ф18, Ф20, Ф22, Ф25, Ф30, Ф32, Ф40mm, one each, 14 pc in all
  • Weights: 20N, 40N, 50N, 60N weight with hook, one each; 10N, 20N weight with hole, one each. Can meet the test requirements to most screwed glands.
  • Diameter of the disc: 250mm(500mm disc for option, with less weights)
Diameter of test rod(mm) Metal glands(N.m) Glands of moulded material(N.m)
<7 6.25 2.5
7~14 6.25 3.75
14~20 7.5 5
>20 10 7.5



Technical parameters:

1,It is equipped with 4-40mmstainless steel stick

2,Weight: 15N,20N,25N,30N 40N*1

3,The diameter of the Disc:250㎜



Our advantage service:

We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.



Technical support:

All our workers are experienced and skilled.


After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
