Plug Pins Insulating Sleeves Abnormal Heat Resistance Testing Machine IEC60884-1 Figure 40

Brand Name:	HongCe
Model Number:	PI-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Insulation Board:

5 Mm Thickness

Metal Parts B Material:

Brass

Bolt Hole Of Metal Parts B:

More Than 0.1 Mm

Packaging Details:

Plywood

Highlight:

electric socket tester

electrical plug tester

Product Description

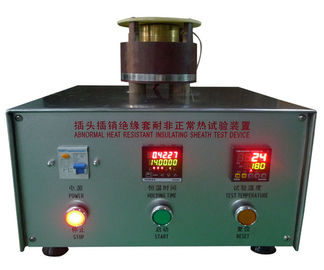

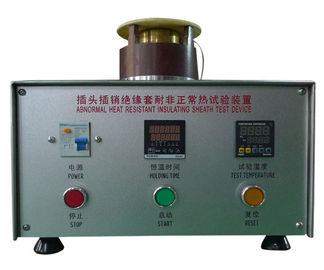

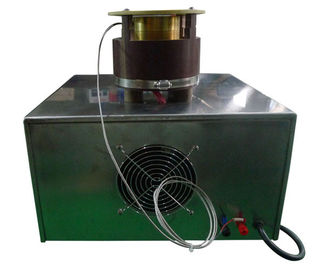

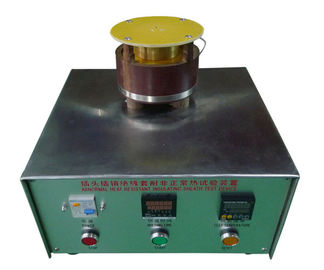

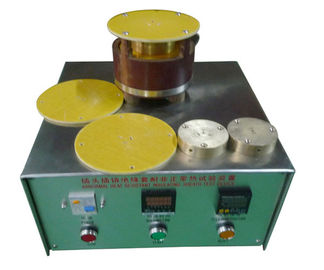

Plug Pins Insulating Sleeves Abnormal Heat Resistance Testing Machine IEC60884-1 Figure 40

Product details:

This device meets the standards of IEC60884-1 figure 40. It is applicable to test improper heating resistance and burning resistance of bolt and plug with insulation sleeve. It can imitate the insulated parts of which the plug-and-socket device’s safety performance may be damaged by electric heat stress. It should not be over damaged for exposure to overheating and under fire.

Technical parameters:

Insulation board: 5 mm thickness round flat surface, the diameter of the two times as test product surface' diameter;

Metal parts B (Fixture): the length is more than 20 mm, brass, five pieces, can be replaced;

Gap between insulation board and metal parts B: 3 mm, ensuring surrounding cross-ventilation

Distance between thermocouple and the metal parts B: 7 mm;

Bolt hole of Metal parts B: more than 0.1 mm;

Equipped with K-type electric heater, imported high-precision digital-display table.

Plug Pins Insulating Sleeves Abnormal Heat Resistance Testing Machine IEC60884-1 Figure 40 0

About us:

HongTong Electromechanical Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
