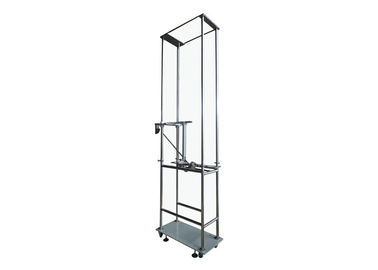

IEC62262 Mechanical Strength Plug Socket Tester Pendulum Impact Test Apparatus

IEC62262 Mechanical Strength Plug Socket Tester Pendulum Impact Test Apparatus

  • IEC62262 Mechanical Strength Plug Socket Tester Pendulum Impact Test Apparatus
  • IEC62262 Mechanical Strength Plug Socket Tester Pendulum Impact Test Apparatus
  • IEC62262 Mechanical Strength Plug Socket Tester Pendulum Impact Test Apparatus
  • IEC62262 Mechanical Strength Plug Socket Tester Pendulum Impact Test Apparatus
IEC62262 Mechanical Strength Plug Socket Tester Pendulum Impact Test Apparatus
Product Details:
Place of Origin: China
Brand Name: HongCe
Model Number: PH-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Highlight:

electric socket tester

,

electrical plug tester

Pendulum Impact Test Apparatus For Energy Impact Test





Product details:

This testing device conforms to IEC62262. It is used for the mechanical strength test of the sheet metal like the substation ark and the metalloid electric energy metering cubicle. The mounting bracket and the angle of impact are adjustable. This device is for the energy impact test (the energy is more than 2J).


Technical parameters:

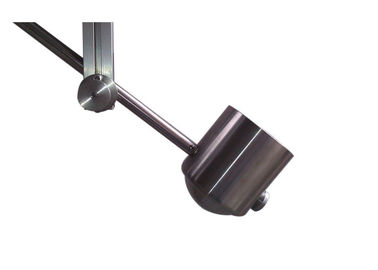

Pendulum: Length: 1000mm; external diameter: 15.9 mm; thickness: 1.5 mm; material: steel;

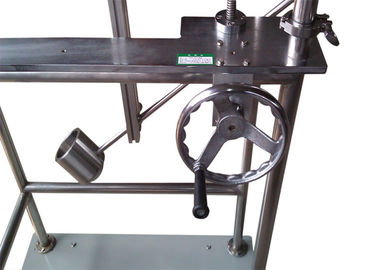

The impact height can be adjustable (200-1200mm). It can be customized. The impact apparatus can be moved on all sides.

The feature of the striking elements

energy/J

≤1

 ±10%

2

±5%

5

±5%

10

±5%

20

±5%

50

±5%

Equivalent mass±2%kg

0.25(0.2)

0.5

1.7

5

5

10

material

nylon

steel

R/mm

10

25

25

50

50

50

D/mm

18.5(20)

35

60

80

100

125

f/mm

6.2(10)

7

10

20

20

25

r/mm

-

-

6

-

10

17

l/mm



The height of falling

energy/J

0.14

0.2

(0.3)

0.35

(0.4)

0.5

0.7

1

2

5

10

20

  50

Equivalent mass/kg

0.25

(0.2)

0.25

(0.2)

0.25

(0.2)

(0.2)

0.25

0.25

0.25

0.5

1.7

5

5

10

Dropping height±1%mm

56

(100)

80

(150)

140

(200)

(250)

200

280

400

400

300

200

400

500





  IK code and the corresponding impact energy

IK code

IK00

IK01

IK02

IK03

IK04

IK05

IK06

IK07

IK08

IK09

IK10

Impact energy/J

a

0.14

0.2

0.35

0.5

0.7

1

2

5

10

20
