| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | TUV、ITS、CSA、BV、SGS 、CNAS(cost additional) |
| Model Number: | LP-3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set per month |
| Working Station: | Three Stations | Counter: | 0～999999 |
|---|---|---|---|
| Atmospheric Pressure: | 80～106kpa | Relative Humidity: | (20～90)%RH |
| High Light: | electric socket tester,socket tester |
||
Load Box For Lab Equipment Testing
Product overview:
This load box is designed and manufactured according to IEC60884,IEC61058,IEC606691 standards and etc. It is used for the on-off ability test and the normal operation lifespan test of the Switches for household and similar fixed-electrical installations. Besides, it is also applied in the test of breaking volume of plug and socket, and mechanical action of normal operation lifespan.

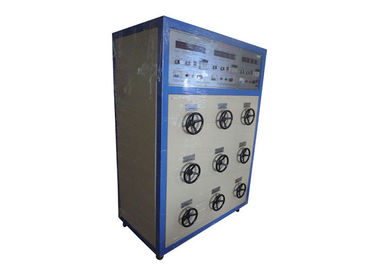

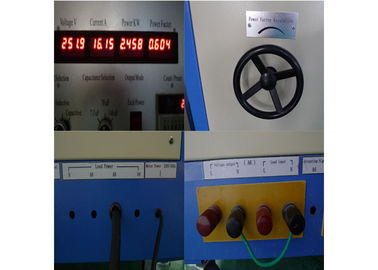

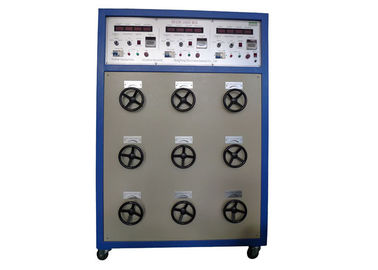

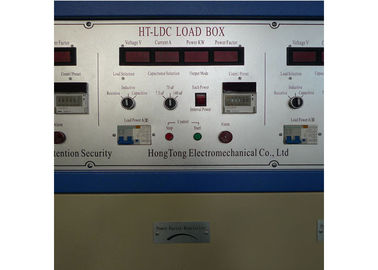

This device is with blue framework and gray cover. The top of this apparatus is the operation control panel on which there are switches for controlling power supply, for the electric capacity conversion and for the load type conversion. There are also the displaying meters of connecting current and voltage as well as power, the buttons of start and stop, alarm, the status indicator light and so on. Below are the according knobs for output voltage adjustment, for current adjustment and for inductance adjustment. There are three load lines. Each of them has the function of resistive, inductive and capacitive Load test. The kind of load test can be chosen by the transferring switch. The load box inside is cooled by the strong wind convection. There are terminals below the load box through which the load box can be connected with the switch and plug-socket endurance tester using the wire. During the process of test, the equipment outputs the current and voltage as well as power.
Technical parameters:
|
No. |
item |
parameters |
remark |
|
1 |
Meter Power |
single phrase with ground wire AC220V/50Hz |
|
|
Load Power |
Three-phrase and four-wire AC380/50Hz(single phrase AC220V,in total three pairs) |
|
|
|
2 |
Working station |
Three stations (It can be customized) |
|
|
3 |
Digital display voltage meter |
0～300V,acurancy:±0.5% |
|
|
4 |
Digital display current meter |
0～40A,accurancy:±0.5% |
|
|
5 |
Digital display power meter |
0～12KW,accurancy:±0.5% |
|
|
6 |
Digital display power factor meter |
0.3～0.999,accurancy:±0.5% |
|
|
7 |
Load method |
Resistive, inductive and capacitive load (three in one) it can be transformed. |
|
|
8 |
Capacitive load |
70uf,140uf,7.3uf can be chosen. |
|
|
9 |
Load output |
Each power and interval power can be chosen. |
|
|
10 |
Counter |
0～999999,it can be preset. |
|
|
11 |
The volume of load power supply |
3*10KVA |
|
|
12 |
The maximum of the output current |
30A,when it exceeds 32A, it stopped automatically. |
|
|
13 |
The maximum of the output voltage |
300V, when it exceeds 305V, the load is stopped automatically. |
|
|
14 |
Atmospheric pressure |
80～106kpa |
|
|
15 |
Environmental temperature |
5～40°C |
|
|
16 |
Relative humidity |
(20～90)%RH |
|
|
17 |
Using place |
No violent shaking Without electromagnetic interference and dust. No explosive or corrosive gas. Good heat dissipation |
|
|
18 |
Size and weight |
L*W*H=1200*760*1830mm,800kg |
|
Our advantage service:
We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
About Us:
Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
