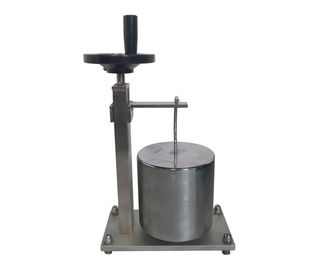

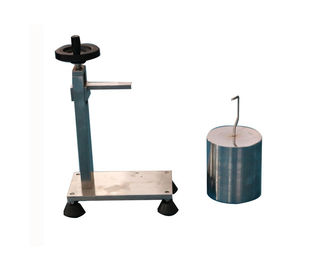

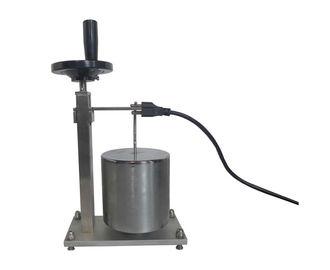

IEC 60884-1 Figure 14 100 N Plug Socket Tester Device For Testing Non - Solid Pins

100 N Plug Socket Tester Device For Testing Non - Solid Pins

Product overview:

The appliance is checked by the test of clause 24 and, for pins which are not solid, by the following test which is made after the test of clause 21. A force of 100 N is exerted on the pin, which is supported as shown in IEC60884-1,  figure 14, for 1 min in a direction perpendicular to the axis of the pin, by means of a steel rod having a diameter of 4,8 mm, the axis of which is also perpendicular to the axis of the pin. During the application of the force, the reduction of the dimension of the pin at the point where the force is applied shall not exceed 0,15 mm. After removal of the rod, the dimensions of the pin shall not have changed by more than 0,06 mm in any direction.


Standard: IEC 60884-1 2013 clause 14.2 figure 14

Application: This device is use to test the mechanical strength of Pins of portable accessories.

Test sample: Non-solid pins

Feature: Apply a 100N force as per standard requirements with standard requirements.

Technical parameters:

1,Steel rod:Φ4.8mm；

2,Load weight:100N；

3,The stress pushed on bolt is from the rotating handwheel operated by manual.

IEC608841 Standard Scope:

This standard also applies to plugs which are a part of cord sets, to plugs and portable socket-outlets which are a part of cord extension sets and to plugs and socket-outlets which are a component of an appliance, unless otherwise stated in the standard for the relevant appliance.

Replace the penultimate paragraph and Note 4 by the following new paragraph and Note 4 and add new Note 5 as follows:

Plugs and socket-outlets complying with this standard should be suitable for use at ambient temperatures not normally exceeding +40 ℃, but their average over a period of 24 h does not exceed +35℃, with a lower limit of the ambient air temperature of -5℃.
