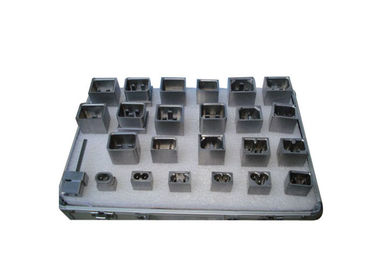

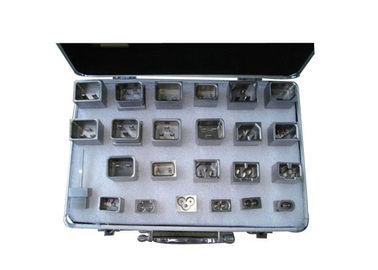

Coupler Gauge Testing Equipment For Laboratory and Measurement Testing Departments
Product Information:
This coupler gauge confirms to the IEC60320.1 standard, it is used for the purpose of verifying coupler sizes and interchangeability measurement of the household and similar appliances, it is a necessary testing equipment for laboratory and measurement testing departments.
Technical Parameters:
|
No. |
Item |
Figure No. |
QTY. |
Remark |
|
1 |
C1 GO gauge |
Figure 2 |
1 |
Check the connector |
|
2 |
C5 GO gauge |
Figure 4 |
1 |
Check the connector |
|
3 |
C7 GO gauge |
Figure 5 |
1 |
Check the connector |
|
4 |
C7 GO gauge A |
Figure 5A |
1 |
Check the side of the connector into the line |
|
5 |
C1 NOT-GO gauge |
Figure 6 |
1 |
Check the connector |
|
6 |
C1,C5,C7 NOT-GO gauge |
Figure 7 |
1 |
Check 2 plugs connector |
|
7 |
C1,C7 NOT-GO gauge |
Figure 8 |
1 |
Check 3 plugs connector |
|
8 |
C8,C8A,C8B GO gauge |
Figure 9 |
1 |
Check the appliance inlet |
|
9 |
C9 GO gauge |
Figure 9A |
1 |
Check the connector |
|
10 |
C9 NOT-GO gauge |
Figure 9B |
1 |
Check the connector |
|
11 |
C10 GO gauge |
Figure 9C |
1 |
Check the appliance inlet |
|
12 |
C13 GO gauge |
Figure 9F |
1 |
Check the connector |
|
13 |
C13,C17 NOT-GO gauge |
Figure 9G |
1 |
Check the connector |
|
14 |
C14,C16A,C18 GO gauge |
Figure 9H |
1 |
Check the appliance inlet |
|
15 |
C15 GO gauge |
Figure 9J |
1 |
Check the connector |
|
16 |
C17 GO gauge |
Figure 9K |
1 |
Check the connector |
|
17 |
C19 GO gauge |
Figure 9L |
1 |
Check the connector |
|
18 |
C20,C24 GO gauge |
Figure 9M |
1 |
Check the appliance inlet |
|
19 |
C21 GO gauge |
Figure 9N |
1 |
Check the connector |
|
20 |
C22 GO gauge |
Figure 9P |
19 |
Check the appliance inlet |
|
21 |
C23 GO gauge |
Figure 9Q |
|
Check the connector |
|
22 |
C13,C15,C17 NOT-GO gauge |
Figure 9R |
1 |
Check the connector |
|
23 |
C15A GO gauge |
Figure 9S |
1 |
Check the connector |
|
24 |
C16A GO gauge |
Figure 9T |
1 |
Check the appliance inlet |
