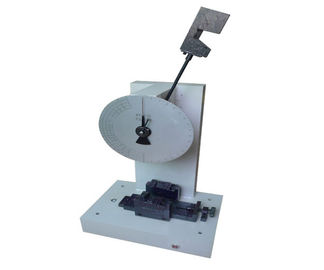

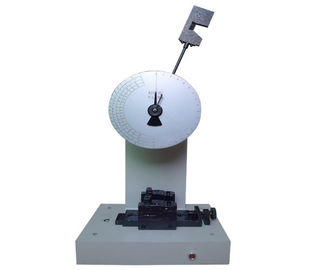

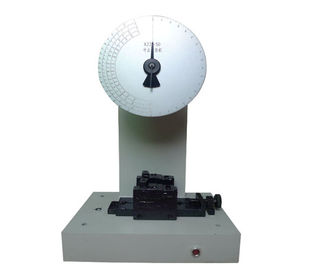

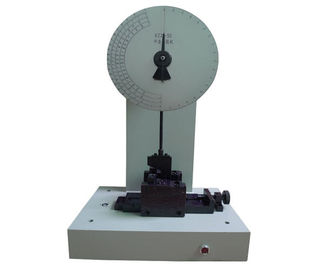

Toughness Charpy Impact Testing Machine For Rigid Plastics Nylon IS0179-1992

Toughness Charpy Impact Testing Machine For Rigid Plastics Nylon IS0179-1992

  • Toughness Charpy Impact Testing Machine For Rigid Plastics Nylon IS0179-1992
  • Toughness Charpy Impact Testing Machine For Rigid Plastics Nylon IS0179-1992
  • Toughness Charpy Impact Testing Machine For Rigid Plastics Nylon IS0179-1992
  • Toughness Charpy Impact Testing Machine For Rigid Plastics Nylon IS0179-1992
  • Toughness Charpy Impact Testing Machine For Rigid Plastics Nylon IS0179-1992
Toughness Charpy Impact Testing Machine For Rigid Plastics Nylon IS0179-1992
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: XJJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Material: Nylon IS0179-1992 Standard: IS0179-1992 And JB/T8762-1992
The Release Way Of Controlling: Electronic Control
High Light:

impact test equipment

,

impact test machine

Charpy Impact Machine Tester





Product details:

This series of the charpy impact testers are designed and manufactured in accordance with the standard requirement of IS0179-1992 and JB/T8762-1992. They are applicable for testing the impact toughness of the non-metallic material such as rigid plastics, nylon, glass fiber reinforced plastics, ceramics and so on.



Technical parameters:



Item

XJJ-5

XJJY-5

XJJ-50

XJJY-50

The release way of controlling

electronic control

electronic control

electronic control

electronic control

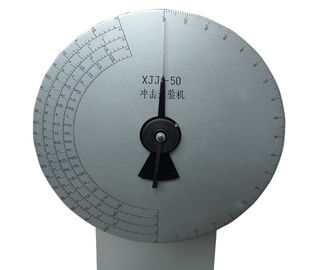

The numerical value displayed

Pointer

Digital display

Pointer

Digital display

The energy of the pendulum bob( J)

1, 2,4, 5

1, 2,4,5

7.5,15,25, 50

7.5, 15, 25,50

The moment of the pendulum bob (N.M)

1J  PL=0.516,

2J  PL=1.031,

4J  PL=2.062,

5J  PL=2.578

1J  PL=0.516,

2J  PL=1.031,

4J  PL=2.062,

5J  PL=2.578

7.5J PL=3.866 ,

15J PL=7.733,25J PL=12.889,50J  PL=25.777

7.5J PL=3.866 ,

15J PL=7.733,

25J PL=12.889,

50J  PL=25.777

Min seale mark

1/100

1/100

1/100

1/100

Impact speed m/s

2.9

2.9

3.8

3.8

The pre-elevation of the pendulum bob

160°

160°

160°

160°

The distance from the pendulum shaft center to the sample center(mm)

221

221

380

380

The fillet radius of the jaw(mm)

1

1

1

1

The angle of the impact blade

30°

30°

30°

30°

The fillet radius of the impact blade

2mm

2mm

2mm

2mm

The weight of the machine base

It is more than 40 times of the heaviest pendulum bob and it can be adjusted to the  horizontal station

It is more than 40 times of the heaviest pendulum bob and it can be adjusted to the  horizontal station

It is more than 40 times of the heaviest pendulum bob and it can be adjusted to the  horizontal station

It is more than 40 times of the heaviest pendulum bob and it can be adjusted to the  horizontal station

Power supply

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ







The sample type

length C

Width B

Thickness D

offset distance

80

10

4

60/62

50

6

4

40

120

15

10

70

125

13

13

95
