| Place of Origin: | China |
| Brand Name: | HongCe |
| Model Number: | HVF-6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 25 days |
| Payment Terms: | T/T |
| Supply Ability: | 15 set per month |
| Power/grade: | Car Interior Decoration Material | Up To Standard: | ISO379、ASTM D5132 |
|---|---|---|---|
| Burning Time: | 9999X0.1s | Burning Angle: | 0° |
| High Light: | flammability chamber,flammability tester |
||

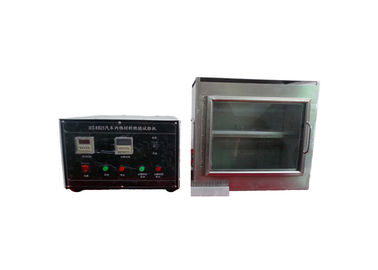

Car Inner Ornament Vertical Flammability Tester
Product information:
The burn resistance tester conforms to the standard of ISO379,ASTM D5132. It is suitable for evaluating the horizontal firing characteristic of the interior decoration material of car (including limousine, multi-purpose passenger car, truck and coach).
This tester is composed of control box, combustion box body, combustion lamp, solenoid valve, high pressure igniter, thermometer, signal control line and upper and lower bracket of test specimen. The control box and combustion box are made of stainless steel. It has nice exterior with resistance to corrosion of smoke and gas. What’s more, the control system of this device is with high degree of automation. For example, autoignition, automatic air supply, self-clocking and automatically end test. It is easy observe and record and it is stable and reliable to use.
Model specification and technical parameters:
|
Parameter model |
HVF-6 |
|
Power/grade |
Car interior decoration material |
|
Up to standard |
ISO379,ASTM D5132 |
|
Time for applying flame |
9999X0.1s |
|
Burning time |
9999X0.1s |
|
Burning angle |
0° |
|
The height between blast burning and test specimen |
19mm(adjustable nozzle centre below the centre of free end of specimen) |
|
Metal comb |
Length is at least 110mm, have 7～8 smooth crenations of every 25mm |
|
Blast burner |
Nozzle jet inner diameter Ø9.5±0.1mm effective length 100mm,have air louver |
|
Flame height |
can be adjusted from 20mm to 100mm according to standard requirement |
|
Meter covering |
L*W*H=385mm*204mm*360mm |
|
Gas category |
high purity liquefied gas |
|
Power supply |
AC 220V±10%,50Hz |
Remark: It is not equipped with the fuming cupboard
