UL94 / IEC60695-11-2 Flammability Test Apparatus For Plastic And Other Non - Metallic Material

UL94 / IEC60695-11-2 Flammability Test Apparatus For Plastic And Other Non - Metallic Material

UL94 / IEC60695-11-2 Flammability Test Apparatus For Plastic And Other Non - Metallic Material
UL94 / IEC60695-11-2 Flammability Test Apparatus For Plastic And Other Non - Metallic Material
UL94 / IEC60695-11-2 Flammability Test Apparatus For Plastic And Other Non - Metallic Material
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS
Model Number: HVF-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
High Light:

IEC 60695-11-2 Flammability Test Apparatus


TUV Flammability Test Apparatus

Horizontal Vertical Flame Chamber Tester With Touch Screen
Products information:

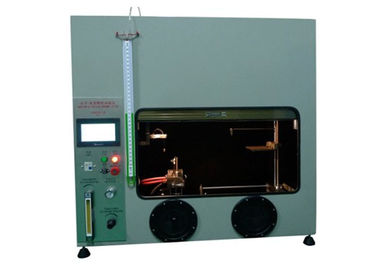

The series of horizontal-vertical flame test apparatus are designed and manufactured according to the standard and related requirement of UL94,IEC60695-11-2, IEC60695-11-3, IEC60695-11-4, IEC60695-11-20. It simulates the influence of early-stage flame when there is a fire around the electric and electronic products, so that to judge the igniting danger degree. It is mainly used in plastic and other non-metallic material sample, solid material. It is also applicable in the Horizontal, vertical flammability test of the relative combustion characteristic of foam plastics whose density is no-less than 250kg/m according to ISO845 test method.

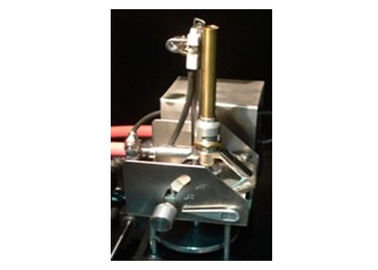

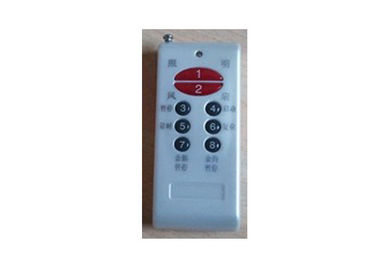

This product adopts the advanced PLC intelligent control system, touch screen humanized operation interface, and with remote wireless sensors operation so that record more precise; using integral intake ignition systems, the combustion time delays 0.1S thus to make sure the sufficient time of gas burning. They are with matte black background, multi-functional flame measure gauge to make the flame adjustment works easier, box full of stainless steel, large observation window, imported fire control systems, nice appearance. And they are gathering a number of advantages of similar products home and abroad, stable performance and easy to operate, it is the first choice for metrological service and laboratory.
Model specifications and technical parameters



Meet the standards

IEC60695,GB5169,UL94,UL498,UL1363,UL498A and UL817


220V  50HZ

Operating system

Mitsubishi PLC control,Weinview 7 inch color touch screen operation


Diameter 9.5mm ± 0.5mm,length 100mm,Imported products,conform to ASTM5025

Burning angle


Flame height

20mm~125mm±1mm adjustable

Timing device

9999X0.1s can be preset


American original Omega Φ0.5mm armour stainless steel protecting jacket K-type thermocouple

Thermometry distance


Temperature measurement

MAX 1100°C

Gas flow

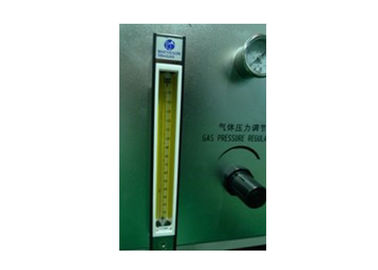

Using imported flowmeter,105 ± 10 ml/min and 965±30ml/min adjustable,precision 1%

Height of water column

Using imported U-tube, the height difference is less than 10mm

Checking time


Thermometry copper head

Ф5.5mm,1.76± 0.01 g;Ф9mm±0.01mm10 ± 0 .05 g,Cu-ETP purity:99.96%

Gas category


Box volume

More than 1 cube,black matte background with exhaust fan
