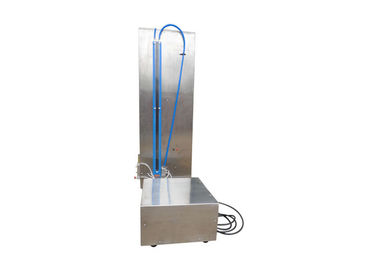

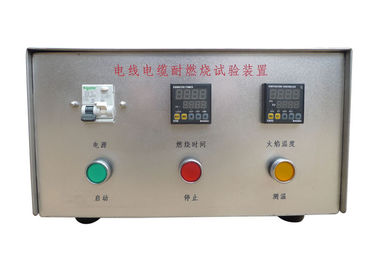

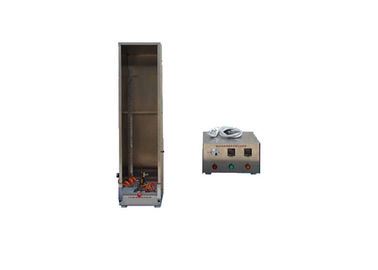

IEC60320-1-2 Electric Wire Flame Test Apparatus For Vertical Combustion

Brand Name:	HongCe
Model Number:	VF-1
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Packaging Details:

Plywood

Highlight:

IEC 60320-1-2 Electric Wire Flame Test Apparatus

CNAS Electric Wire Flame Test Apparatus

Product Description

Electric Wire Flame Resistance Test Apparatus

Product information:

This apparatus conforms to the standard requirement of IEC60320-1-2. It is applicable for vertical combustion test of the single electric wire or cable. It is used to measure the combustion characteristic of insulation. The burning time can be preset according to the specimen. It is convenient to adjust the flame height.

Technical parameters:

Parameter/model	VF-1
Working voltage	220V/50Hz
Timing device	9999X0.1S
Burner Bunsen	According to the standard requirement of IEC60695-11-2
Flame power	1KW
Combustion angle	tilt 45°
Gas flow	160~1600ml/min;
Air flow	1.5~15l/min
Box size	3004501200㎜
gas	propane
temperature thermocouple	φ0.5armour nickel-chromium/nickel aluminum wire K-Thermocouple
Conforms to standard	IEC60320-1-2
