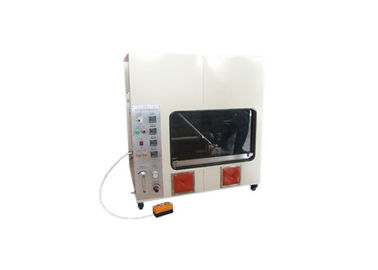

ISO8124 / ISO6941 50W Toy Flammability Testing Equipment 220V/AC 50Hz 0.5A

ISO8124 / ISO6941 50W Toy Flammability Testing Equipment 220V/AC 50Hz 0.5A

  • ISO8124 / ISO6941 50W Toy Flammability Testing Equipment 220V/AC 50Hz 0.5A
ISO8124 / ISO6941 50W Toy Flammability Testing Equipment 220V/AC 50Hz 0.5A
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: TF-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
High Light:

flammability chamber

,

flammability tester

Toy Flame Test Equipment , Toy Flammability Safety Test Apparatus





Product information:

This device is designed and manufactured according to ISO8124 toy safety combustion performance. Adopting the burner that conforms to ISO6941, this testing device is suitable for combustion performance testing of all kinds of toy products and their subsidiary materials. Some examples are list as follows:

1. The clothing Children wear, especially shawls, flowing clothes and the similar type of product;

2. The toys that children can enter in (such as toys tents and dollhouse);

3. The toys that children can embrace with (Soft stuffed toy);

4. The objects that Children wear such as mask and wig;

5. Beard, tentacles, wig, mask and other headware toys which contain plush or other subsidiary materials



This product adopts the integral intake ignition system. The combustion time delays 0.1S thus to make sure the sufficient time of gas burning. It is with black inwall and multi-functional flame measure gauge. The illuminance is less than 20lx. The box is made of stainless steel. It is equipped with large observation window and imported digital indicator of high precision. And it gathers a number of advantages of similar products home and abroad.



Technical parameters:



Power

50W(HB/V)

Timing device

9999×0.1S

Combustion angle

0°,20°,45°

Height of the flame

0~200mm adjustable

Blast burner standard

ISO6941

Temperature measurement

MAX 1100°C

Gas flow

0~0.3ml/min

Flow precision

1%

Gas category

Butane or propane

Box volume

Greater than 1cube

Working power supply

220V/AC  50Hz  0.5A
