Flammability Testing Equipment Foam Horizontal Burning Tester ISO9772-2001 / UL94

Brand Name:	HongCe
Model Number:	HVF-5
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Standard:

UL94、ISO9772-2001

Time For Applying Flame:

9999X0.1s

Time For Residual Flame:

9999X0.1s

Burning Angle:

0°

Packaging Details:

Plywood

Highlight:

flammability tester

flame test equipment

Product Description

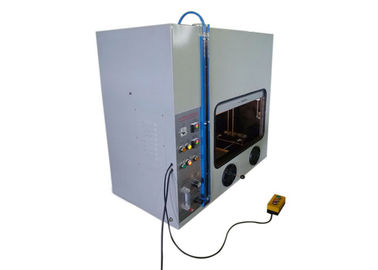

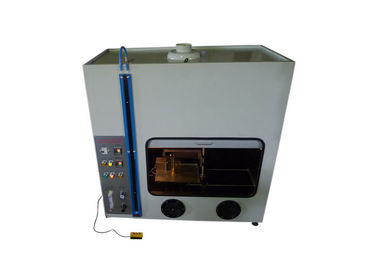

Flammability Testing Equipment Foam Horizontal Burning Tester ISO9772-2001 / UL94

Product information:

Foam horizontal burning tester conforms to the standard requirements of ISO9772-2001,UL94 and so on. It is suitable for testing the horizontal-vertical combustion performance of the small foam plastic sample whose density is no-less than the measured density of 250kg / m3.

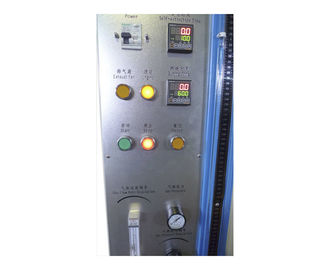

This product uses the integral intake ignition system. The combustion time delays 0.1S thus to make sure the sufficient time of gas burning. It is with matte black background, multi-functional flame measure gauge, stainless steel of box full, large observation window, imported digital indicator of high precision, nice appearance. And it gathers a number of advantages of similar products home and abroad.

Model specification and technical parameters:

Parametermodel	HVF-5
Power/grade	HB
Up to standard	UL94,ISO9772-2001
Time for applying flame	9999X0.1s
Time for residual flame	9999X0.1s
Time for residue burning	9999X0.1s
Number of times for supplying flame	0-9999
Burning angle	0°
Flame height	20~175mm adjustable
Gas flow	0.03~ 0.3ml/Min
Gas pressure	0 ~ 1 Mpa ；back pressure ±300mm water column
Specimen size	LWH=127mm12.7mm(>3.05mm)
Position control	specimen holder can be adjusted up and down, burning seat can be adjusted route front and back
Blast burner standard	IEC60695-11-4,inner diameter 9.5mM,effective length100mm, with wing section lamp top
Gas category	Methane or propan or mixed gas
Box volume	More than 0.75cube,black inwall,brightness is less than 20lx

Flammability Testing Equipment Foam Horizontal Burning Tester ISO9772-2001 / UL94 0

About Us:

Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
