Mechanical Spring Impact Testing Machine Of IEC60068-2-63 / IEC60068-2-75 Standard

Mechanical Spring Impact Testing Machine Of IEC60068-2-63 / IEC60068-2-75 Standard

Brand Name: HongCe
Model Number: SH
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100 set/ month
Detail Information
Place of Origin:
China
Certification:
TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Impact Energy:
0.14,0.2,0.35,0.5,0.7,1J
Allowable Error:
±10%
The Power:
<10N
Standard:
IEC60068-2-63,IEC60068-2-75,IEC60335 And IEC60598
Packaging Details:
Aluminum box
Highlight:

impact test machine

,

pendulum impact testing machine

Product Description

Mechanical Spring Impact Testing Machine Of IEC60068-2-63 / IEC60068-2-75 Standard





Product details:



This spring impact test conforms to the standard requirements of IEC60068-2-63,IEC60068-2-75,IEC60335 and IEC60598. As required in the standards, it is used to test the mechanical integrity of product enclosures.  After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards.

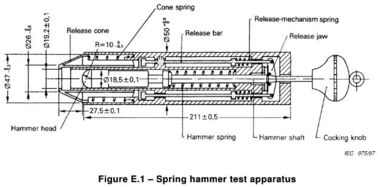

Body: Includes release mechanism and striking element guide, mass 1250 g.
Striking element: With cocking knob and hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g
Release Cone: mass 60 g, 10N release force



Technical parameters:



Model

SH-1

SH-2

SH-5

SH-6

Impact energy J

0.14,0.2,0.35,0.5,0.7,1

2

0.2,0.35,0.5,0.7,1

0.14,0.2,0.35,0.5,0.7,1

Allowable error

±10%

±10%

±10%

±10%

The weight of Impact element

250g±5g

500g±5g

250g±5g

250g±5g

The power

<10N

<10N

<10N

<10N

The whole weight

1250g±10g

1500g±10g

1450g±10g

1450g±10g


 Picture view:

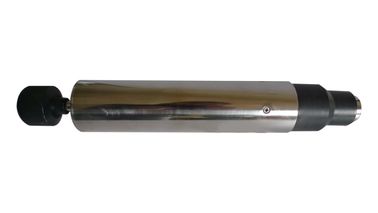

Mechanical Spring Impact Testing Machine Of IEC60068-2-63 / IEC60068-2-75 Standard 0

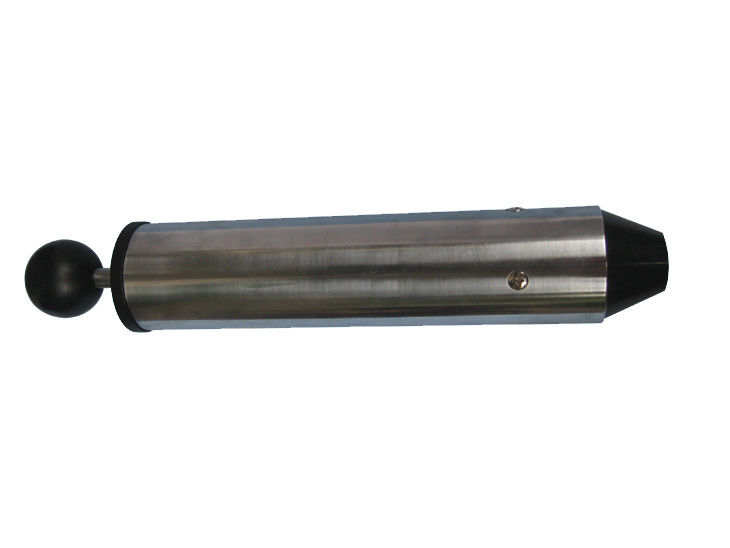

Mechanical Spring Impact Testing Machine Of IEC60068-2-63 / IEC60068-2-75 Standard 1
