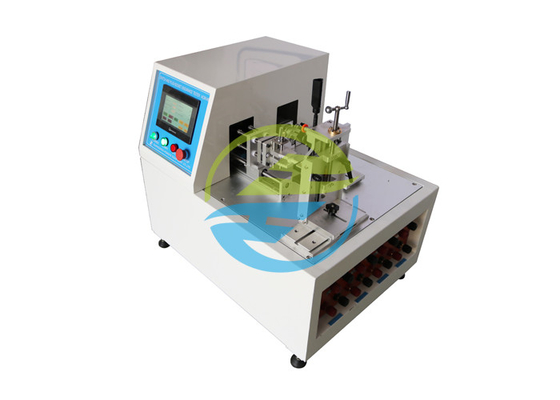

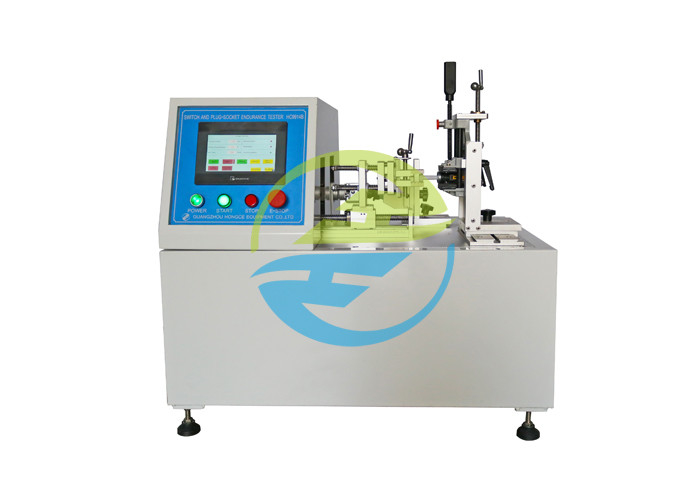

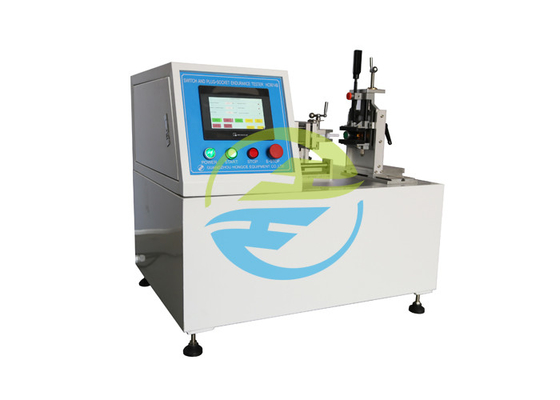

IEC60884-1 Switch And Plug - Socket Endurance Tester With Liner And Rotating Station

IEC60884-1 Switch And Plug - Socket Endurance Tester With Liner And Rotating Station

IEC60884-1 Switch And Plug - Socket Endurance Tester With Liner And Rotating Station
IEC60884-1 Switch And Plug - Socket Endurance Tester With Liner And Rotating Station
IEC60884-1 Switch And Plug - Socket Endurance Tester With Liner And Rotating Station
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: HC9914B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Product Name: Switch And Plug - Socket Endurance Tester Warranty: 1 Year
Standard: IEC60884-1, IEC60669-1 Operation: Touch Screen
Stations: 2 Test Times: 0-999999, Preset
Liner Stroke: 0-100mm, Preset Rotate Angle: 0-360°, Preset
High Light:

IEC60884-1 Plug Socket Endurance Tester

,

Switch Plug Socket Endurance Tester

,

Rotating Station Plug Socket Endurance Tester

IEC60884-1 Switch and Plug - Socket Endurance Tester With Liner and Rotating Station



Product Introduction                 Plug Socket Tester
The test machine is designed and manufactured according to IEC60884-1clause 20 and 21 fig 16, IEC60669-1 and etc. It is applicable for the switches breaking capacity and normal operation life test of household and similar fixed electrical installations, also suitable for plugs and sockets’ breaking capacity and normal operation life testing of the household and similar purposes. The test equipment simulates the switches, plugs and sockets, fuse contacts long-time rotation, insertion and withdraw actions, for assessing whether the switches, plugs and sockets, fuse contacts are able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contact points has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples are excessive worn or have other harmful consequences. It is special test equipment for switches and plug-sockets electrical endurance test.             Plug Socket Tester

The test equipment can do endurance testing for button switches, rocker switches,plugs and sockets. Coupled with the external load bank (resistive, inductive and capacitive) can process loading test, it has a corresponding control system. Please note that the external load bank should be prepared by user.                                      Plug Socket Tester
The test machine is made of aluminum frame, stainless steel seal plate, driven by the servo motor and ball screw, with 7-inch color touch screen, Mitsubishi PLC control system, humanized operation interface and powerful digital display. The test times, conduction current time, test speed, test stroke can be preset. It has the electric current display function that can show the sample’s conduction current. The whole test machine has 2 working stations, each station can process linear switches and plugs and sockets synchronously. When there are continuously switched on or off due to the adhesion or failure, it will alarm and record the appropriate number of experiments, and it alarms when the test times reach the preset value. The test machine will automatically stop when an alarm occurs.



Standard: IEC 60884-1 2013 clause 20, 21, CISPR 14-1, IEC 61058-1, IEC60669-1 etc.    Plug Socket Tester

Application: This device is used for household and similar purpose fixed electrical appliance switch, plug and socket, coupler for on-off ability, breaking capacity and normal operation life test. To verify whether the switch, plug or socket can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.

Test sample: Household or similar purpose switches, plugs, sockets, couplers

Feature: Using aluminum alloy frame, stainless steel sealing plate, driven by the servo motor, precision ball screw and synchronous belt drive, 7 inch color touch screen operation and powerful digital display function, PLC control system. Can perform lift test to button switch, toggle switch, rocker switch, rotary switch, plug and socket. With corresponding control system, can perform loading test with load(resistive, inductive and capacitive). Preset test times, conduction current time (opening time), test speed, test trip and rotation angle (up to 15 angles). With current display function, can display the conducting current.          Plug Socket Tester



Model HC9914B
Power supply AC 220V±10% 50Hz
Operation interface 7 inch color LCD touch screen                            Plug Socket Tester
Drive mode servo motor + ball screw / timing belt or pneumatic
Control system PLC control
Stations

2 Stations:

1 liner stations;

1 rotating stations.

Independent control

Test sample Button switch, rocker switch, toggle switch, rotary switch, plug and socket
Test times 0-999999, preset
Connecting time 0-99.9s, preset
Liner stroke 0-100mm, preset
Rotate angle 0-360°, preset                Plug Socket Tester
Test speed

15 times per min

7.5 times per min

30 times per min

Clamp XYZ three axis clamp

Test mechanism

(multi)

Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism
Load ports 2 ports                                                                Plug Socket Tester
