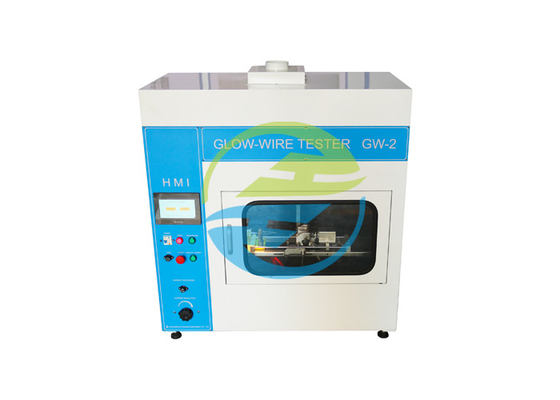

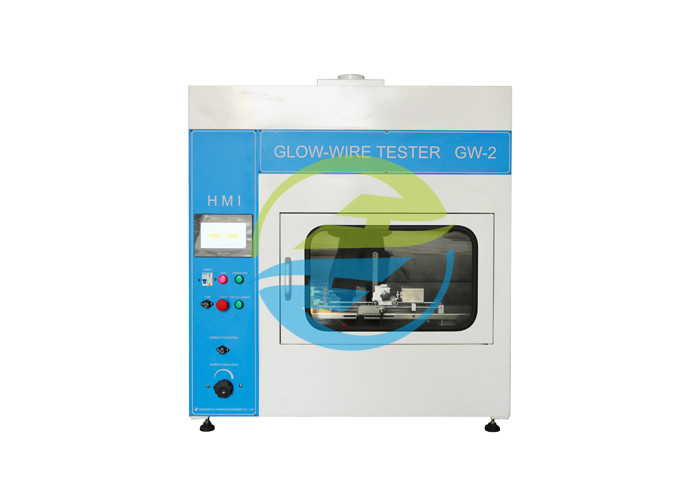

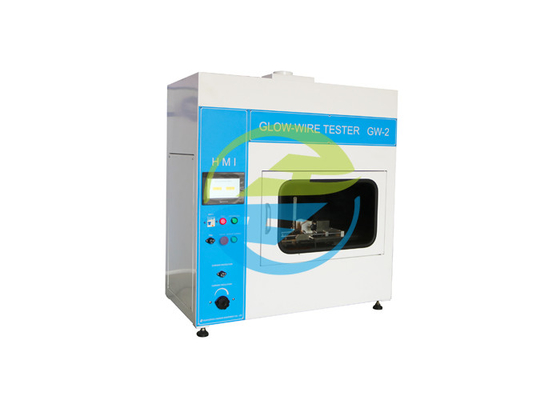

IEC60695-2-10 Flammability Testing Equipment With Ni77/Cr20 Glowing Filament

IEC60695-2-10 Flammability Testing Equipment With Ni77/Cr20 Glowing Filament

Brand Name:	HongCe
Model Number:	GW-2
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional )

Glow Wire Material:

> 77 % Ni/20 ± 1 % Cr

Specimen Movement Speed:

10mm /s ～ 25mm /s

Calibration Temperature:

960°±10°C

Test Chamber Volume:

>0.5 Cubic Meter

Product Name:

Glow Wire Tester

Warranty:

1 Year

Standard:

IEC60695-2-10, IEC60695-2-13 And UL746A

Power Supply:

220V 50Hz

Packaging Details:

plywood

Highlight:

IEC 60695-2-10 Flammability Testing Equipment

Cr20 Flammability Testing Equipment

Ni77 Flammability Testing Equipment

Product Description

IEC60695-2-10 Flammability Testing Equipment With Ni77/Cr20 Glowing Filament

Introduction: Flammability Testing Equipment

The Glow-wire ignition Temperature(GWIT)is to be assigned as the temperature which is 25°C (45°F) higher than that temperature of the tip of the glow-wire which does not cause ignition during three consecutive tests.

Either during normal operation , under unusual conditions , or as a result of malfunctions , some components of an electrical apparatus , such as wires or other conductors may become abnormally hot.
When these overheated parts are in intimate contact with the insulating matmay occur . This test is intended to determine the relative ignitability of insulating materials under these conditions. Flammability Testing Equipment

Standard:IEC60695-2-10, IEC60695-2-13 and UL746A.

Application:This device simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in a short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the No flame ignition source fire test to test initiation temperature and flammability index of related glowing filament.

Test sample:Electrical equipment and its components and parts, solid electrical insulating materials and other solid combustible materials. Flammability Testing Equipment

Feature: This equipment adopts a new design concept, while in the realization of accurate positioning, but also to achieve the rapid adjustment after replacing the sample, truly meet the requirement of easy and convenient operation; The control system adopts PLC and touch screen control, each parameter can reflect the real situation of the relevant parameters more timely and accurately, and the operation is intuitive and convenient, so as to meet the needs of scientific research Flammability Testing Equipment

Parameters:

ParametersModel	GW-2(Touch screen)
Working voltage	220V/50Hz
Control operation mode	PLC control, 7 inch color touch screen operation, with infrared remote control
Glowing filament	Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) special standard ring shape,horizontal standing
Specimen pressure on glowing filament	0.95N±0.1N
Maximum depth of heating	7mm ± 0.5mm Flammability Testing Equipment
Specimen movement speed	10mm /s ～ 25mm /s
Temperature calibration	Calibration temperature:960°±10°C, the hot wire by electric heating
	Thermocouple: RS imported 1mm armour nickel-chromium/nickel/ nickel aluminum K-Thermocouple, temperature resistance 1100°
	Silver foil: purity 99.8%, area :2m², thickness:0.06mm
Tray	A layer of silk paper (12~30g/m³) is covered on the 10mm thick pine board, with a distance of 200±5mm below the test sample
Test chamber	>0.5 cube,sample distance from the inside of the box is greater than 100mm, black yogon background,background illuminance ≤ 20Lx,with exhaust fan
Testing time	30s±1s Flammability Testing Equipment
Test procedure	The test sample is driven by the car and automatic run, the car will return automatically after glow-wire entered the test sample of 7mm
Lighting	Equip with lighting in the test chamber, with control
Dimension	11005501200mm,140kg

IEC60695-2-10 Flammability Testing Equipment With Ni77/Cr20 Glowing Filament 1
