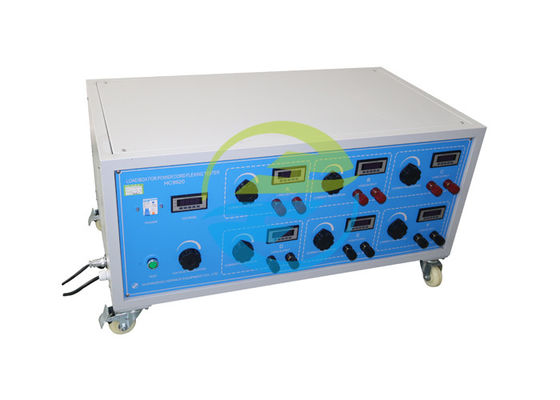

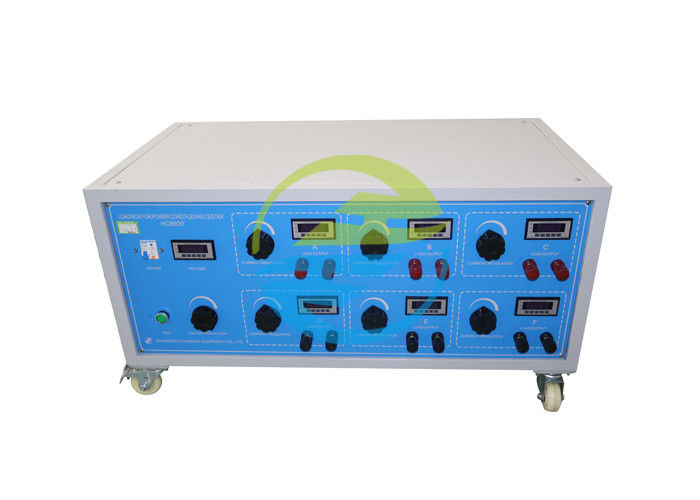

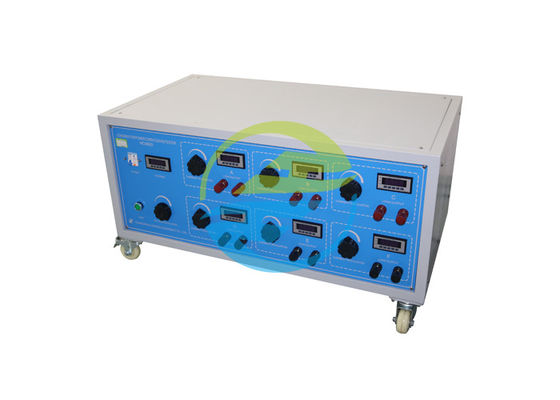

IEC 60884-1 Load Box For Power Cord Flexing Tester 6 Stations 0 - 40A Adjustable

Brand Name:	HongCe
Model Number:	HC9920
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Output Current:

0 ~ 40A Is Arbitrary Adjustable

Output Voltage:

0 ~ 280V

Test Station:

6 Stations

Ammeter Accuracy:

±1％

Connecting Wire:

7PIN Aviation Wire

Environment Temperature:

-10℃~50℃

Name:

Load Box

Warranty:

1 Year

Packaging Details:

Plywood

Highlight:

IEC 60884-1 Load Box

6 Stations Load Box

Cord Flexing Tester Load Box

Product Description

IEC 60884-1 Load Box For Power Cord Flexing Tester 6 Stations 0 - 40A Adjustable

Standard: IEC 60884-1 2013 clause 23.4 and UL817, VDE0620

Application: This device is used for test the flexing properties of non-rewirable plugs (terminals) and non-rewirable portable socket-outlets with power cord flexing tester. Plug Socket Tester

Test sample: Non-rewirable plugs and non-rewirable portable socket-outlets

Feature: The box type floor structure is adopted, provide 6 channels of low voltage and high current output.

Parameters: Plug Socket Tester

Input voltage	AC220V±5%, 60Hz
Output current	0 ~ 40A is arbitrary adjustable
Output voltage	0 ~ 280V
Test station	Six stations
Ammeter Accuracy	±1％
Connecting wire	7PIN Aviation wire
Environment temperature	-10℃~50℃

Precautions:

1. The load output voltage is not safe voltage, prohibit disconnecting the test samples under load voltage.

2. There are test voltage between different load output, please prevent electric shocking.

3. The naked test lines should not touch the test equipment housing, to prevent short circuits caused by the accident.

4. Power supply must have a good grounding protection. Plug Socket Tester

5. The current and voltage regulation should be processed slowly, do not too fast.

6. The non-professionals or non-untrained personnel should not operate this equipment.

7. The test machine should be placed in ventilation environment, ensure that at least 10cm far away from the wall.

8. Unauthorized change the internal structure of the instrument will be considered as a waiver of the warranty rights.

IEC 60884-1 Load Box For Power Cord Flexing Tester 6 Stations 0 - 40A Adjustable 0
