IEC60068-2-75 Impact Testing Machine Striking Element IK Level Test IK10

IEC60068-2-75 Impact Testing Machine Striking Element IK Level Test IK10

  • IEC60068-2-75 Impact Testing Machine Striking Element IK Level Test IK10
  • IEC60068-2-75 Impact Testing Machine Striking Element IK Level Test IK10
IEC60068-2-75 Impact Testing Machine Striking Element IK Level Test IK10
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: SH-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Carton Box
Delivery Time: 10 Days
Payment Terms: T/T
Supply Ability: 50 set/ month
Contact Now
Detailed Product Description
Name: Striking Element Warranty: 1 Year
Usage: Impact Test, IK Level Test Energy: 2J/5J/10J/20J/50J
Standard: IEC60068-2-75 Annex A Equivalent Mass: 0.5kg/1.7kg/5kg/5kg/10kg
The Height Of Dropping ±1%/mm: 400/300/200/400/500 IK Code: IK07/IK08/IK09/IK10
High Light:

IEC 60068-2-75 Impact Testing Machine

,

IK10 Impact Testing Machine

,

Striking Element Impact Testing Machine

IEC60068-2-75 Impact Testing Machine Striking Element IK Level Test IK10



Test to verify the protection against mechanical impacts:

In order to verify the protection against mechanical impacts, blows shall be applied to the enclosure to be tested.
The test shall be done by using one of the test apparatus described in IEC 60068-2-75.
The relevant product standard shall specify which types of test apparatus are appropriate.
During the test the enclosure shall be mounted on a rigid support, according to the manufacturer’s instructions for use. A support is considered to be sufficiently rigid if its displacement is less than or equal to 0,1 mm under the effect of an impact directly applied and whose energy corresponds to the degree of protection. Alternative mounting and support, suitable for the product, may be specified in the relevant product standard.                                Impact Testing Machine
The number of impacts shall be five on each exposed face unless otherwise specified in the relevant product standard. The impacts shall be evenly distributed on the faces of the enclosure(s) under test. In no case shall more than three impacts be applied in the surroundings of the same point of the enclosure. The relevant product standard shall specify the points of application of impacts.

                                                                                                                                                                    Impact Testing Machine

Standard: IEC60068-2-75 Annex A

Application: This device is suitable for mechanical impact strength test to electric cabinets and other sheet metal, shell of Non metal electric energy metering cabinet, substation cable switchboard and cable junction box with vertical impact tester or pendulum impact device.

Test sample: Electrical appliance for household and similar purpose, luminaries

Feature: In according with the standard requirement                                           Impact Testing Machine

Parameters:

Model(Energy) 2J 5J 10J 20J 50J
equivalent mass(kg) 0.5 1.7 5 5 10
Dripping height(±1% mm) 400 300 200 400 500
Diameter(mm) 35 60 80 100 125



 IEC60068-2-75 Impact Testing Machine Striking Element IK Level Test IK10 0

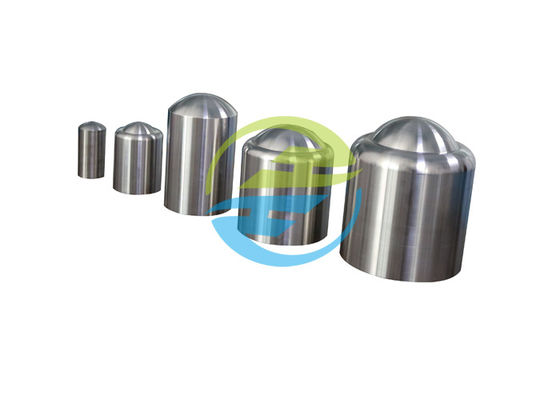

IEC60068-2-75 Impact Testing Machine Striking Element IK Level Test IK10 1
