2 Stations Cable Testing Equipment For Low Temperature Bending Test

Brand Name:	HongCe
Model Number:	HDX1307
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Name:

Cold Bending Test Machine

Standard:

IEC60811-1-4 Clause 8.1 And 8.2

Warranty:

1 Year

Diameter Of Samples:

Φ2.5mm ～12.5mm

Rotation Speed:

5S/ Turn, Manual Control

Diameter Of Pipe:

Ф3.5、Ф6、Ф10、Ф12、Ф16mm

Number Of Station:

Material:

Stainless Steel

Packaging Details:

plywood

Highlight:

2 Stations Cable Testing Equipment

clause 8.1 Cable Testing Equipment

Product Description

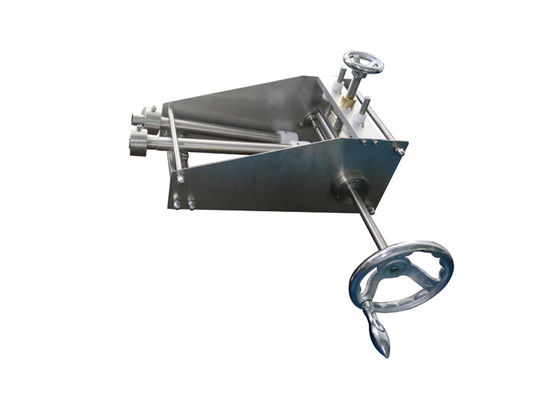

2 Stations Cable Testing Equipment For Low Temperature Bending Test

Standard:IEC60811-1-4 clause 8.1 and 8.2, common test methods for insulating and sheathing materials of electric and optical cables-part 1-4:Methods for general application-Test at low temperature.

Application:This test is intended in general for cables with an overall diameter up to and including 12.5 mm, or for flat cables, a major axis dimension up to and including 20 mm.

Test sample:Cables with an overall diameter up to and including 12.5 mm, or for flat cables, a major axis dimension up to and including 20 mm.

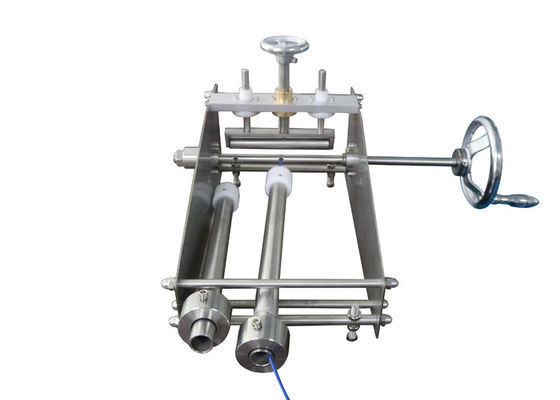

Feature:Made of stainless steel, 2 stations,equip with the extended handle which can be connected to the outside of the low temperature chamber.

Parameters:

Station:2

Diameter of samples:Φ2.5mm ～12.5mm

The number of turns:2 to 10 turns, and the number of turns shall be as specified in the following table:

Overall diameter (d) of the test piece (mm)	Number of turns
D≤2.5	10
2.5﹤d≤4.5	6
4.5﹤d≤6.5	4
6.5﹤d≤8.5	3
8.5﹤d	2

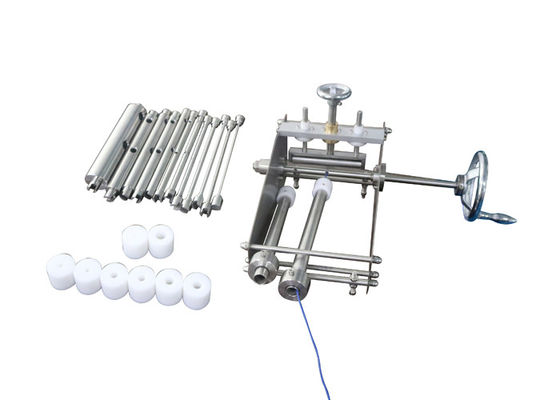

Test condition: The diameter of the mandrel shall be between 4 and 5 times the diameter of the test piece. Standard equip with the mandrel :Ф4,Ф5,Ф6,Ф7,Ф8,Ф10,Ф12,Ф14,Ф16,Ф18,Ф20,Ф24,Ф37.5mm

Rotation speed: 5S/ turn, manual control

Diameter of pipe: Ф3.5,Ф6,Ф10,Ф12,Ф16mm, each of two pieces

2 Stations Cable Testing Equipment For Low Temperature Bending Test 0
