Universal Resistance Fixture 1mm² 630mm² Conductor Cable Testing Equipment

Brand Name:	HongCe
Model Number:	HDX1301
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Name:

Universal Conductor Resistance Fixture

Standard:

IEC60245-1, IEC60245-2

Warranty:

1 Year

Measuring Length:

100~1000mm

Test Sample:

1mm² ~ 630mm² Conductor

Dimensions:

1530 × 210 × 150mm

Material:

Aluminum Alloy Base Plate, Copper Clamp

Function:

Check The Electrical Resistance Of Conductors

Packaging Details:

plywood

Highlight:

1mm² Conductor Cable Testing Equipment

IEC60245-2 Cable Testing Equipment

Product Description

Cable Testing Equipment Universal Conductor Resistance Fixture 1mm² - 630mm² Conductor

Standard:IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

Standard description:

Electrical resistance of conductors

In order to check the electrical resistance of conductors, the resistance of each conductor shall be measured of a sample of cable of at least 1 m in length, and the length of each sample shall be measured.

Application:Applicable to the DC resistance measurement of variety of power cables and electrical equipment, wire and cable equipment specified in "Test methods for electrical properties of electric cables and wires" , it can also be used for DC resistance measurement of other conductor materials.

Test sample:1mm² ~ 630mm² Single or multi-stand conductor and core of power cable.

Feature:It adopts the fast clamp and withdraw structure by using positive and negative threaded rod, and the voltage and the current clamp are separated to improve the contact point of the sample. Aluminum alloy base plate, copper clamp.

Parameters:

The distance of clamping head between two voltage	100~1000mm
Test sample	1mm² ~ 630mm² conductor
Dimensions	1530 × 210 × 150mm
Adapting electrical bridge	QJ84 double bridge, Optional.

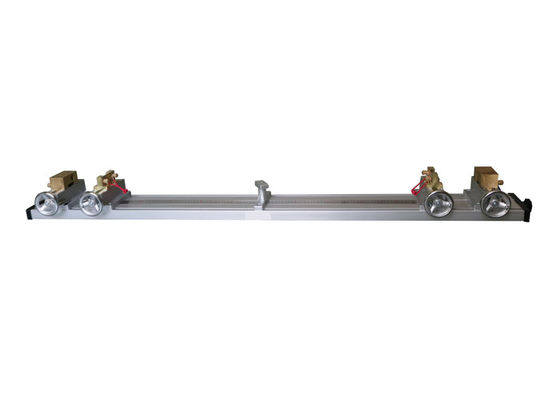

Universal Resistance Fixture 1mm² 630mm² Conductor Cable Testing Equipment 0

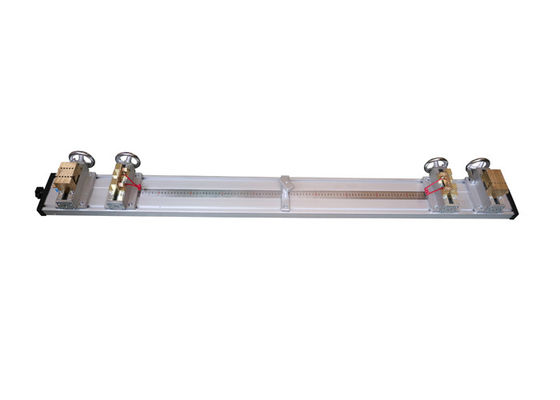

Universal Resistance Fixture 1mm² 630mm² Conductor Cable Testing Equipment 1
