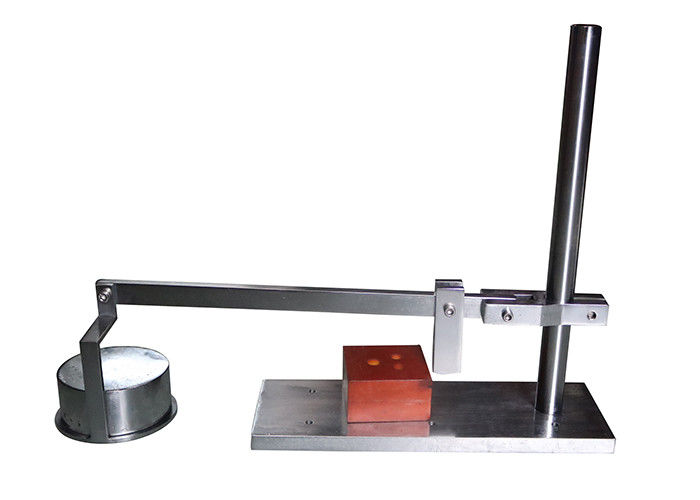

BS1363-1 Figure 2 Mechanical Strength Plug Socket Tester

Brand Name:	HongCe
Model Number:	MST-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Applied Force:

230-240N

Metal Test Pressure Block:

R2.0~2.5， W25.0~25.2

Hardwood Block:

According To BS1363.1-2018 In Figure 2b

Material:

Stainless Steel

Standard:

BS1363-1:2018 Clause 9, Figure 2

Application:

Resilient Accessible External Surfaces Of Socket-outlets

Test Voltage:

AC2000±60V/50HZ

Warranty:

1 Year

Packaging Details:

carton box

Highlight:

BS1363-1 Mechanical Strength Tester

Figure 2 Plug Socket Tester

Product Description

BS1363-1 figure 2 Plug Socket Tester Mechanical Strength Tester On Resilient Covers

Product Introduction:

The device conforms to the BS1363-1:2018 clause 9, figure 2. Resilient accessible external surfaces of socket-outlets shall be so designed and constructed that when assembled and wired as in normal use, there is no risk that, as a result of undue pressure, live parts could penetrate the accessible external surfaces or become so disposed as to reduce creepage and clearances below those given in clause 8.

The design of the apparatus shall be such that a steady force of 230-240N can be applied to those places where the possibility of a failure exists, the force being applied through a metal test pressure block.

Each sample shall be subjected to the force at each chosen place in turn. During each application of force, a test voltage of 2 000 V ±60 V 50 Hz of substantially sinusoidal waveform is applied for 60-65s between all live parts bonded together and the metal test pressure block.

During the test no flashover or breakdown shall occur. Plug Socket Tester

After the test it shall not be possible to touch live parts with test 11 of BS EN 61032:1998 applied with a force of 28-30N.

For more details, Please refer to the relevant standard.

Technical Parameters:

Applied force

230-240N

Metal test pressure

block

R angle of 2.0 to 2.5, width of 25.0 to 25.2

Hardwood block

According to BS1363.1-2018 in Figure 2b

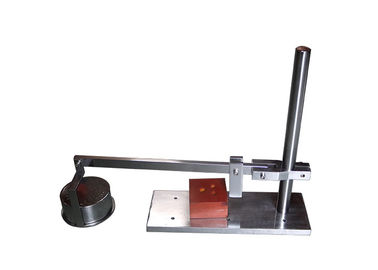

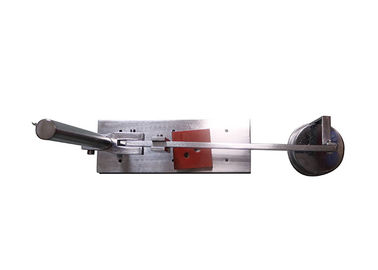

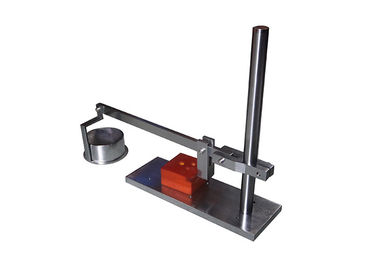

Picture view:
