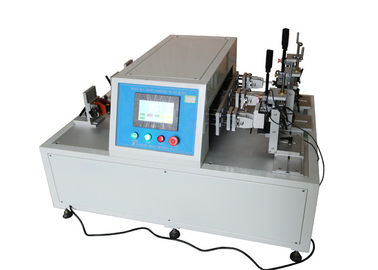

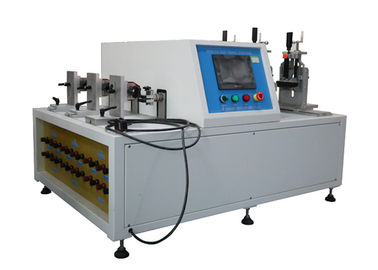

6 Stations Plug Socket Tester With Color LCD Touch Screen

6 Stations Plug Socket Tester With Color LCD Touch Screen

6 Stations Plug Socket Tester With Color LCD Touch Screen
6 Stations Plug Socket Tester With Color LCD Touch Screen
6 Stations Plug Socket Tester With Color LCD Touch Screen
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HC9914
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Power Supply: AC 220V±10% 50Hz Drive Mode: Servo Motor + Ball Screw / Timing Belt Or Pneumatic
Control System: PLC Control Stations: 6 Stations
Test Times: 0-999999, Preset Connecting Time: 0-99.9s, Preset
Rotate Angle: 0-360°, Preset Load Ports: 6 Ports
High Light:

Switch Plug Socket Endurance Tester

,

IEC 60884-1 Plug Socket Tester

6 Stations Plug Socket Tester Switch Plug Socket Endurance Tester With Color LCD Touch Screen



Product information: Accessories shall have adequate breaking capacity.
Compliance is checked by testing socket-outlets and plugs with pins which are not solid, by means of an appropriate test apparatus.

During the test, no sustained arcing shall occur.
After the test, the specimens shall show no damage impairing their further use and the entry holes for the pins shall not show any damage which may impair the safety within the meaning of this standard.



Accessories shall withstand without excessive wear or other harmful effect, the mechanical, electrical and thermal stresses occurring in normal use.
Compliance is checked by testing socket - outlets, and plugs with resilient earthing socket - contacts or with pins which are not solid, by means of an appropriate test apparatus. Plug Socket Tester





Standard: IEC60669-1, IEC 60884-1 2013 clause 20, 21, CISPR 14-1, IEC 61058-1etc.

Application: This device is used for household and similar purpose fixed electrical appliance switch, plug and socket, coupler for on-off ability, breaking capacity and normal operation life test. To verify whether the switch, plug or socket can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.

Test sample: Household or similar purpose switches, plugs, sockets, couplers

Feature: Using aluminum alloy frame, stainless steel sealing plate, driven by the servo motor, precision ball screw and synchronous belt drive, 7 inch color touch screen operation and powerful digital display function, PLC control system. Can perform lift test to button switch, toggle switch, rocker switch, rotary switch, plug and socket. With corresponding control system, can perform loading test with load(resistive, inductive and capacitive). Preset test times, conduction current time (opening time), test speed, test trip and rotation angle (up to 15 angles). With current display function, can display the conducting current. Plug Socket Tester



Parameters:

  1. Power supply: AC 220V±10% 50Hz
  2. Operation interface 7 inch color LCD touch screen
  3. Drive mode: servo motor + ball screw / timing belt or pneumatic
  4. Control system: PLC control
  5. Model and parameters table(customizable)





Model H9914
Stations

6 Stations:

3 liner stations;

3 rotating stations.

Synchronization control

Test sample Button switch, rocker switch, toggle switch, rotary switch, plug and socket
Test times 0-999999, preset
Connecting time 0-99.9s, preset
Liner stroke 0-100mm, preset
Rotate angle 0-360°, preset
Test speed

15 times per min

7.5 times per min

30 times per min

Clamp XYZ three axis clamp

Test mechanism

(multi)

Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism
Load ports 6 ports

Dimension

Weight

WDH=1090*800*700mm

147kg

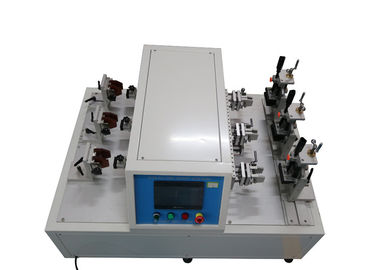

6 Stations Plug Socket Tester With Color LCD Touch Screen 0

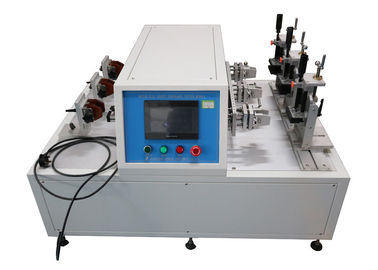

6 Stations Plug Socket Tester With Color LCD Touch Screen 1

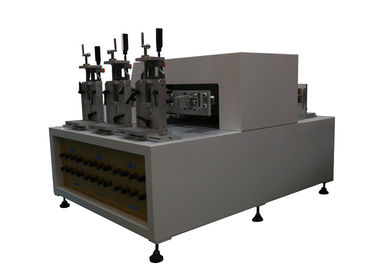

6 Stations Plug Socket Tester With Color LCD Touch Screen 2
