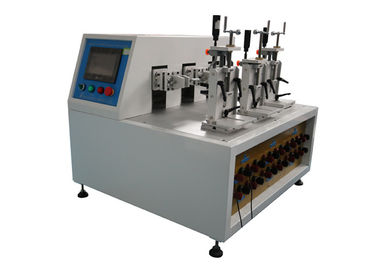

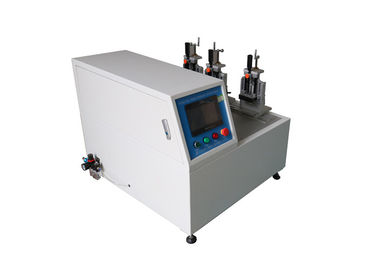

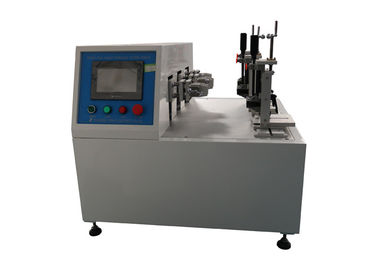

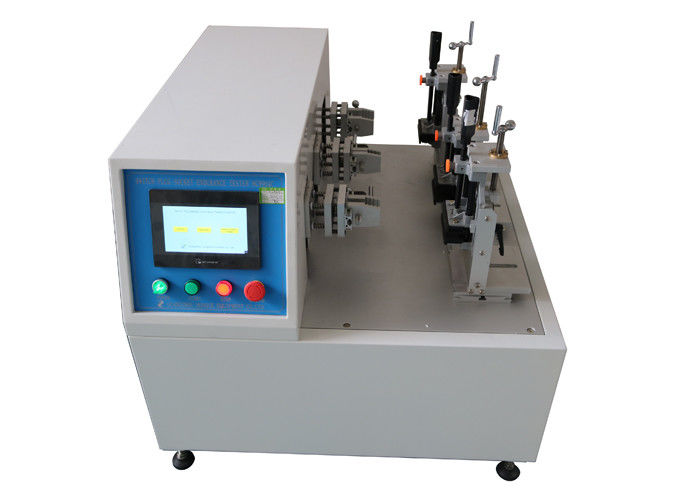

IEC 60884-1 Switch Plug Socket Endurance Tester 3 Stations

IEC 60884-1 Switch Plug Socket Endurance Tester 3 Stations

IEC 60884-1 Switch Plug Socket Endurance Tester 3 Stations
IEC 60884-1 Switch Plug Socket Endurance Tester 3 Stations
IEC 60884-1 Switch Plug Socket Endurance Tester 3 Stations
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HC9914C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Load Ports: 3 Ports Clamp: XYZ Three Axis Clamp
Liner Stroke: 100mm Connecting Time: 0-99.9s, Preset
Test Times: 0-999999, Preset Standard: IEC60669-1, IEC 60884-1 2013 Clause 20, 21 Etc.
Warranty: 1 Year Product Name: Switch Plug Socket Endurance Tester
High Light:

IEC60669-1 Socket Endurance Tester

,

100mm Switch Plug Endurance Tester

IEC 60884-1 PLC Control Plug Socket Tester Switch Plug Socket Endurance Tester 3 Stations



product  information:

The test machine is designed and manufactured according to IEC60884-1clause 20 and 21 fig 16, IEC60669-1 and etc. It is applicable for the switches breaking capacity and normal operation life test of household and similar fixed electrical installations, also suitable for plugs and sockets’ breaking capacity and normal operation life testing of the household and similar purposes. The test equipment simulates the switches, plugs and sockets, fuse contacts long-time rotation, insertion and withdraw actions, for assessing whether the switches, plugs and sockets, fuse contacts are able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contact points has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples are excessive worn or have other harmful consequences. It is special test equipment for switches and plug-sockets electrical endurance test.

The test equipment can do endurance testing for button switches, rocker switches,plugs and sockets. Coupled with the external load bank (resistive, inductive and capacitive) can process loading test, it has a corresponding control system. Please note that the external load bank should be prepared by user.

The test machine is made of aluminum frame, stainless steel seal plate, driven by the servo motor and ball screw, with 7-inch color touch screen, Mitsubishi PLC control system, humanized operation interface and powerful digital display. The test times, conduction current time, test speed, test stroke can be preset. It has the electric current display function that can show the sample’s conduction current. The whole test machine has 2 working stations, each station can process linear switches and plugs and sockets synchronously. When there are continuously switched on or off due to the adhesion or failure, it will alarm and record the appropriate number of experiments, and it alarms when the test times reach the preset value. The test machine will automatically stop when an alarm occurs.



Standard: IEC60669-1, IEC 60884-1 2013 clause 20, 21, CISPR 14-1, IEC 61058-1etc.
Application: This device is used for household and similar purpose fixed electrical appliance switch, plug and socket, coupler for on-off ability, breaking capacity and normal operation life test. To verify whether the switch, plug or socket can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.
Test sample: Household or similar purpose switches, plugs, sockets, couplers
Feature: Using aluminum alloy frame, stainless steel sealing plate, driven by the servo motor, precision ball screw and synchronous belt drive, 7 inch color touch screen operation and powerful digital display function, PLC control system. Can perform lift test to button switch, toggle switch, rocker switch, rotary switch, plug and socket. With corresponding control system, can perform loading test with load(resistive, inductive and capacitive). Preset test times, conduction current time (opening time), test speed, test trip and rotation angle (up to 15 angles). With current display function, can display the conducting current.


Parameters:

  1. Power supply: AC 220V±10% 50Hz
  2. Operation interface 7 inch color LCD touch screen
  3. Drive mode: servo motor + ball screw / timing belt or pneumatic
  4. Control system: PLC control
  5. Model and parameters table(customizable)
ModelH9914C
Stations

3 stations, pneumatic.
Independent control

Test sampleButton switch, rocker switch, toggle switch, plug and socket
Test times0-999999, preset
Connecting time0-99.9s, preset
Liner stroke100mm
Rotate angle-
Test speed

15 times per min
7.5 times per min
30 times per min

ClampXYZ three axis clamp

Test mechanism (multi)

Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism
Load ports3 ports

Dimension Weight

WDH=880*680*700mm
80kg
