25 MM Radius 304 Stainless Steel 20N Plug Socket Tester

Brand Name:	HongCe
Model Number:	HC9932
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Compression Force:

20N

Cylindrical Face:

25 Mm Radius

Material:

304 Stainless Steel

Standard:

IEC 60884-1

Warranty:

1 Year

Product Name:

Heat Resistance Compression Test Device

Usage:

Compression Test

Test Object:

Surface Mounting Box Etc.

Packaging Details:

Carton box

Highlight:

Heat Resistance Compression Test Device

25 MM Plug Socket Tester

Product Description

IEC 60884-1 Plug Socket Tester Heat Resistance Compression Test Device Of 20N Compression Force

Standard: IEC 60884-1 2013 clause 24.19, 25.4 and figure 38

Application: This device is use for compression test for the verification of resistance to heat for accessories for electrical appliances and surface mounting box Plug Socket Tester

Test sample: Shrouds of portable socket-outlet, accessories for electrical appliances and surface mounting box

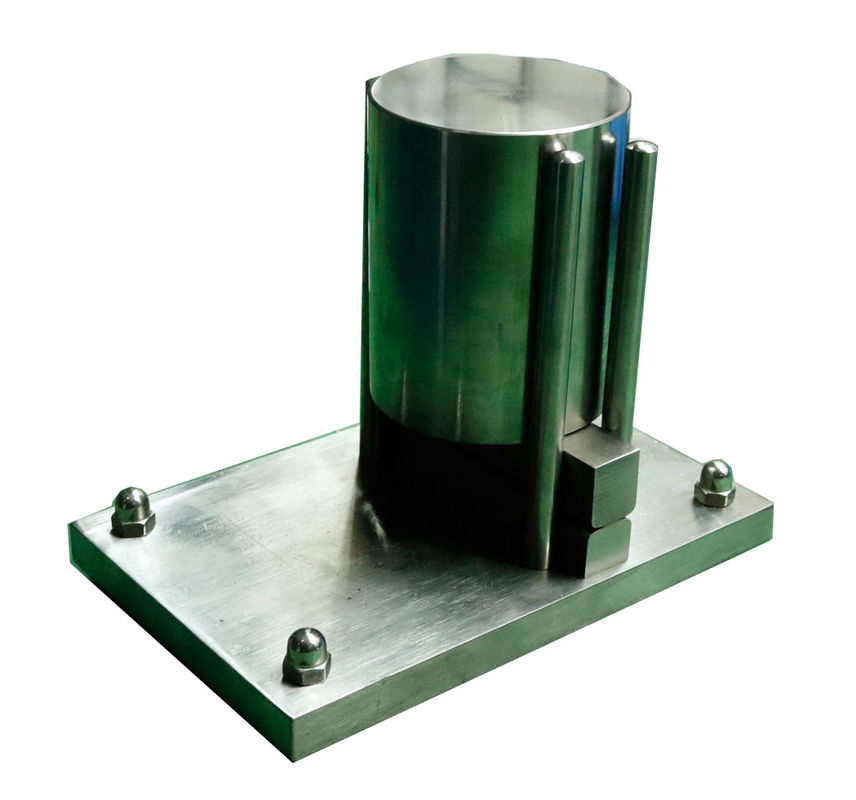

Feature: This compression test device is made up with moving jaw, fixed jaw, guides, and compression weights, use for compression test for the verification of resistance to heat for accessories for electrical appliances and surface mounting box with a heating chamber.

Parameters:

Compression weight: having a cylindrical face of 25 mm radius, corners are rounded with a radius of 2,5 mm
Compression force: 20N
Test time:

1 min, test at an temperature of (25 ± 5) °C - for shrouds of portable socket-outlets –;

1 hour, test at an temperature of (80 ± 2) °C - for accessories for electrical appliances and surface mounting box.

Cylindrical face	25 mm radius
Corner rounding	2,5 mm
Compression force	20N

25 MM Radius 304 Stainless Steel 20N Plug Socket Tester 0

25 MM Radius 304 Stainless Steel 20N Plug Socket Tester 1
