IEC60811 High Temperature Indentation Device With Stainless Steel Support

Brand Name:	HongCe
Model Number:	HDX1310
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	25 sets /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Material:

Stainless Steel

Working Station:

3 Working Station

Blade Width:

0.70±0.01mm

Standard:

IEC60811-508

Packaging Details:

cartoon box

Highlight:

IEC60811 Cable Testing Equipment

0.70mm Temperature Indentation Device

Product Description

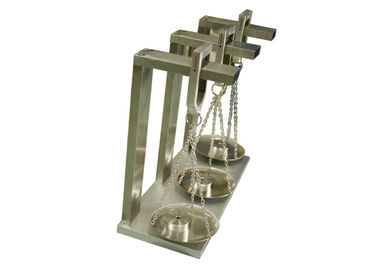

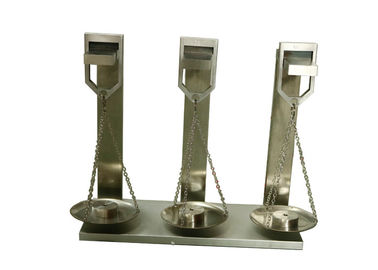

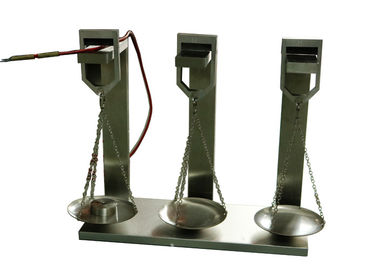

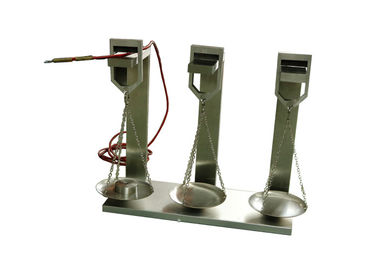

IEC60811 High Temperature Indentation Device With Stainless Steel Support

Standard:

IEC 60811-508 Electric and optical fibre cables — Test methods for non-metallic materials - Part 508: Mechanical tests — Pressure test at high temperature for insulation and sheaths, IEC 60811-3-1 figure1.

Application:

For PVC insulated and sheathed wire and cable products, measure resistance to thermal deformation of PVC insulated and sheathed under the action of thermal and mechanical load, the insulation wire to be measured can be round, fan-shaped and parallel cord, the sheathed to be measured can be round or flat. It is not recommended to use this test method when the thickness of the test sample (Insulation or sheath) less than 0.4MM.

Test sample:

PVC insulated and sheathed wire and cable products, the material of pin-insulating sleeves

Parameters:

Working station	3 stations
Blade width	0.70±0.01mm
Sample support plane	0°, 90°, 120° one piece per each, can replaceable use.
Support	Smooth stainless steel support
Weight	1, 2, 5, 10, 20, 50, 100, 200, 500, 1000g, each for 3 pieces, totally are 30 pieces.

IEC60811 High Temperature Indentation Device With Stainless Steel Support 0
