IEC 60884 IEC Tester Creepage Distance Testing Card Shortest Path Between Two Conductive Parts

Name: IEC 60884 IEC Tester Creepage Distance Testing Card Shortest Path Between Two Conductive Parts
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: CK-5
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	CK-5
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Size Specification:

30 Creepage Distance Gauges

STANDARD:

IEC60884-1, IEC60598, IEC60335 Etc

Material:

Stainless Steel

Type:

Pawn Type

Name:

Creepage Distance Testing Card

Model:

CK-5

Packaging Details:

Carton box

Highlight:

socket tester

electrical plug tester

Product Description

IEC 60884-1 Creepage distance test card,Shortest Path Between Two Conductive Parts

Standard:

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 27.1.

Creepage distances, clearances and distances through sealing compound shall be not less than the values shown in table 23.

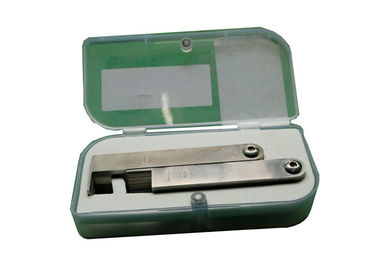

IEC 60884 IEC Tester Creepage Distance Testing Card Shortest Path Between Two Conductive Parts 0

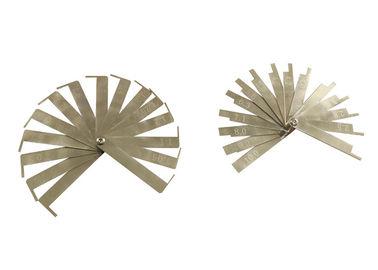

IEC 60884 IEC Tester Creepage Distance Testing Card Shortest Path Between Two Conductive Parts 1

Test sample:

Electrical conductive parts.

Feature:

Stainless steel, pawn type, to verify the creepage distance between conductive components

Application:

It is used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

Parameters:

Model No.	Size Specification
CK-2	1mm/1.5mm/2mm/2.5mm/3mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm/7.5mm/8mm. Total 15 creepage distance gauges
CK-5	1mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm /2.5mm /2.8mm /3.2mm /3.6mm /4.0mm /4.2mm /4.5mm/ 5.0mm /5.6mm /6.3mm /7.1mm /8.0mm/9.0mm/10.0mm. Total 30 creepage distance gauges

The creepage distance gauges is with 30 creepage distance gauges:

1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm

/2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm

Material: Stainless steel

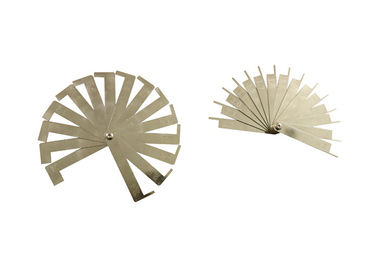

IEC 60884 IEC Tester Creepage Distance Testing Card Shortest Path Between Two Conductive Parts 2

Notice

1. Please do not damage the appliance shape (such as scratching, bending, etc.).

2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
