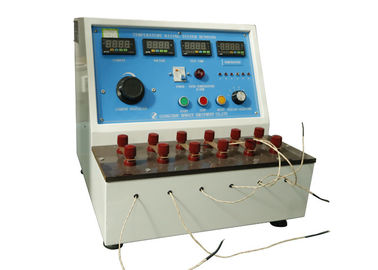

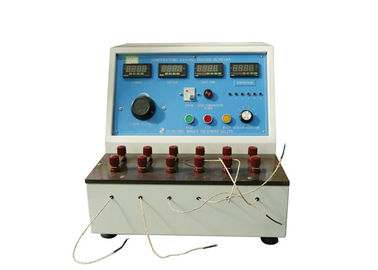

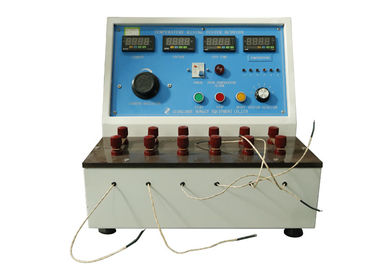

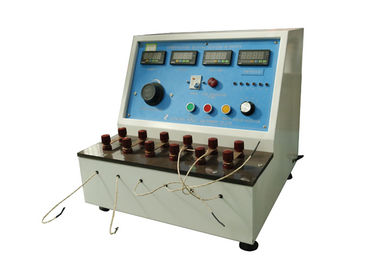

Household Plug Socket Tester For The Temperature Rise Test Of IEC60884-1 Clause 19 Figure 44 high - precision 6 stations

Brand Name:	HongCe
Model Number:	HC9910A
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

Chnia

Certification:

Third part calibration certificate(cost additional)

Test Station:

6 Stations

Test Current:

0-125A

Test Voltage:

＜12V

Temperature:

0-150°C

Packaging Details:

Plywood

Highlight:

IEC 60884-1 Plug Socket Tester

Figure 44 Plug Socket Tester

6 Stations Plug Socket Tester

Product Description

Device For The Temperature Rise Test Of IEC60884-1 Clause 19 Figure 44 high-precision 6 stations

Standard:
IEC60884-1 Plugs and socket-outlets for household and similar purposes – Part 1:General requirements clause 19 and figure 44.

Application:
It is mainly used to test the plug device and its accessories around, such as dimmers, fuses, switches, power regulators, etc., and it cannot reach excessive temperatures during normal use.

Test sample:
Household plugs and sockets.

Features:
This device adopts a high-precision digital meter, sensor signal input with 6 work stations, over-temperature and overload protection with voice prompts, strong applicability and stable performance.

Parameter:

Item	Parameters
Test station	6
Test current	0-125A adjustable
Test voltage	Less than 12V
Timer	0-9999s, adjustable, digital display
Temperature instruments	0-150°C, digital display
Power supply	220V, 50HZ
Test object	Plug pin
Standard	IEC60884-1 Fig 44 Clause 19

Connecting wire and current matching table:

Sizes of the wire (single copper core)	Max. Load Current
1.5mm²	20A
2.5mm²	28A
4mm²	38A
6mm²	48A
10mm²	65A
16mm²	88A
25mm²	113A
50mm²	142A
70mm²	171A
95mm²	218A
120mm²	265A
150mm²	305A
185mm²	355A
240mm²	410A
300mm²	490A
400mm²	560A
500mm²	650A
630mm²	750A
2.5mm²	880A
800mm²	1100A

Household Plug Socket Tester For The Temperature Rise Test Of IEC60884-1 Clause 19 Figure 44 high - precision 6 stations 0
