| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9914C |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per month |
| Drive Mode: | Precision Double Guide Cylinder | Test Rate: | 10-200mm/s |
|---|---|---|---|
| Control System: | PLC Control | Test Stroke: | 100mm |
| High Light: | PLC Plug Socket Tester,200mm/s Plug Socket Tester,100mm Plug Socket Tester |
||

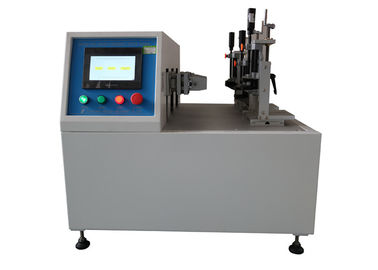

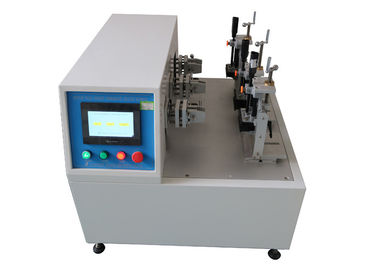

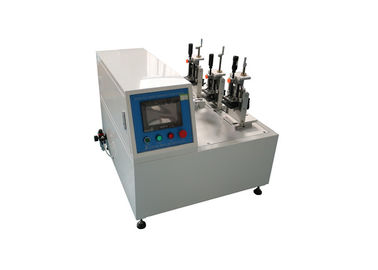

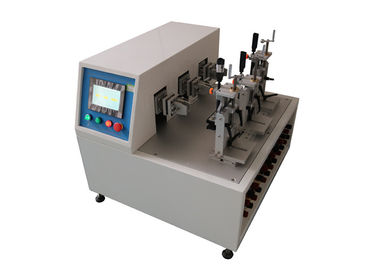

Apparatus For Breaking Capacity And Normal Operation Test For Plugs And Socket-Outlets
Standard:
IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 20,clause 21 and figure 16.
Breaking capacity:
Accessories shall have adequate breaking capacity.
Compliance is checked by testing socket-outlets and plugs with pins which are not solid, by means of an appropriate test apparatus, an example of which is shown in figure 16.
Normal operation:
Accessories shall withstand without excessive wear or other harmful effect, the mechanical, electrical and thermal stresses occurring in normal use.
Compliance is checked by testing socket-outlets, and plugs with resilient earthing socketcontacts or with pins which are not solid, by means of an appropriate test apparatus, an example of which is shown in figure 16.
Application:
It is applicable for the switches breaking capacity and normal operation life test of plugs and socket-outlets for household and similar purposes.
Test sample:
Button switch, plug and socket.
Parameters:
| Parameters Name | Parameter Data |
| Power | AC230V, 50Hz |
| Work station |
3 stations, pneumatic. Can test Button switch, plug and socket Independent control |
| Operation interface | 7-inch touch screen |
| Drive mode | Precision double guide cylinder |
| Control system | PLC control |
| Test times | 0～999999 times, can be preset |
| Conduction time | 0～999.9s, can be preset |
| Break time | 0 ~ 999.9s, can be preset |
| Test stroke | 100mm |
| Test rate | 10～200mm/s |
| Test environment |
Atmospheric pressure 80 ~ 106kpa; Ambient temperature 5~ 40℃; Relative humidity (20~ 90) %RH; Use place: no violent shaking, no vibration, no electromagnetic interference, no dust, no explosive or corrosive gas, good heat dissipation |
