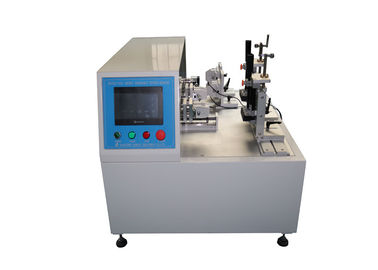

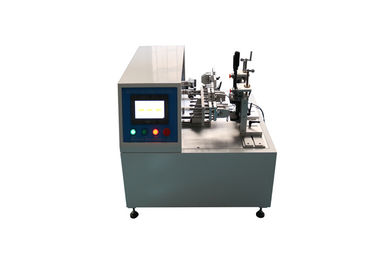

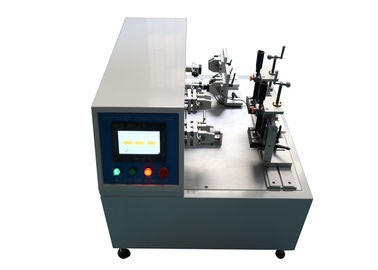

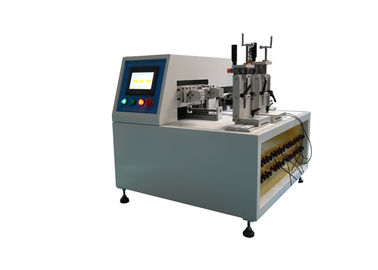

IEC60884 Switch Plug Socket Test Machine Normal Operation Life PLC Control 4 Stations

IEC60884 Switch Plug Socket Test Machine Normal Operation Life PLC Control 4 Stations

  • IEC60884 Switch Plug Socket Test Machine Normal Operation Life PLC Control 4 Stations
  • IEC60884 Switch Plug Socket Test Machine Normal Operation Life PLC Control 4 Stations
  • IEC60884 Switch Plug Socket Test Machine Normal Operation Life PLC Control 4 Stations
  • IEC60884 Switch Plug Socket Test Machine Normal Operation Life PLC Control 4 Stations
IEC60884 Switch Plug Socket Test Machine Normal Operation Life PLC Control 4 Stations
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: HC9914D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 30 sets /month
Contact Now
Detailed Product Description
MODEL: HC9914D Station: 4 Working Stations
Power: AC220V Controller: PLC Control
Liner Stroke: 0-100mm, Preset Rotate Angle: 0-360°, Preset
High Light:

IEC 60884 Switch Plug Socket

,

PLC Switch Plug Socket

,

4 Stations Switch Plug Socket

IEC60884 Switch Plug Socket Normal Operation Life PLC Control 4 Stations Test Machine



Product Introduction

The test machine is designed and manufactured according to IEC60884-1clause 20 and 21 fig 16, IEC60669-1 and etc. It is applicable for the switches breaking capacity and normal operation life test of household and similar fixed electrical installations, also suitable for plugs and sockets’ breaking capacity and normal operation life testing of the household and similar purposes. The test equipment simulates the switches, plugs and sockets, fuse contacts long-time rotation, insertion and withdraw actions, for assessing whether the switches, plugs and sockets, fuse contacts are able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contact points has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples are excessive worn or have other harmful consequences. It is special test equipment for switches and plug-sockets electrical endurance test.



The test equipment can do endurance testing for button switches, rocker switches,plugs and sockets. Coupled with the external load bank (resistive, inductive and capacitive) can process loading test, it has a corresponding control system. Please note that the external load bank should be prepared by user.

The test machine is made of aluminum frame, stainless steel seal plate, driven by the servo motor and ball screw, with 7-inch color touch screen, Mitsubishi PLC control system, humanized operation interface and powerful digital display. The test times, conduction current time, test speed, test stroke can be preset. It has the electric current display function that can show the sample’s conduction current. The whole test machine has 2 working stations, each station can process linear switches and plugs and sockets synchronously. When there are continuously switched on or off due to the adhesion or failure, it will alarm and record the appropriate number of experiments, and it alarms when the test times reach the preset value. The test machine will automatically stop when an alarm occurs.



Technical Parameters

Parameters Name Parameter Data Remark
Power AC220V, 50Hz
Work station

2 liner stations;

2 rotating stations.


Operation interface 7-inch touch screen
Drive mode Servo motor
Control system Mitsubishi PLC
Test times 0~999999 times, can be preset
Conduction time 0~999.9s, can be preset
Break time 0~999.9s, can be preset
Test stroke Linear:0 ~ 100mm, adjustable
Test speed

15 times per min

7.5 times per min

30 times per min


Test environment

Atmospheric pressure 80 ~ 106kpa;

Ambient temperature 5~ 40℃; Relative humidity (20~ 90) %RH; Use place: no violent shaking, no vibration, no electromagnetic interference, no dust, no explosive or corrosive gas, good heat dissipation


Dimensions L*W*H=1300mmx800mmx600mm
Weight 180KGS




Precautions

1. Operators should carefully read the instructions before using this equipment, understand the use of electrical safety, and make the corresponding safety precautions; proceed the test before confirming there is no hidden trouble of safety.

2. The voltage is the 1.1 times of the rated voltage of the sample, and the electric current is 1.25 times of the rated current of the sample. Please choose the voltage and current values according to the requirements of the related standards, or the test samples will be damaged and personal safety accidents will be caused.



3. The wires of the test samples which are connected to the load should be adapt to the allowed rated current of the test samples.

4. After pressing the emergency stop button, it must be reset by right twisting the button, then press “Reset”, if not, the test equipment will not work or run mistakenly.

5. When the device fails, please turn off the power and then restart.

6. When process load test, must strictly follow the instructions to connect the circuit, as well as pay attention to safety.

7. Each fixtures and clamps requires regular lubrication and maintenance.
