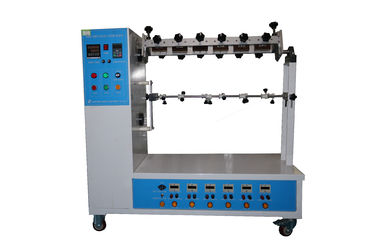

IEC 60884-1 Figure 21 Power Cord Flexing Tester With 6 Sets Of Clamps

IEC 60884-1 Figure 21 Power Cord Flexing Tester With 6 Sets Of Clamps

  • IEC 60884-1 Figure 21 Power Cord Flexing Tester With 6 Sets Of Clamps
  • IEC 60884-1 Figure 21 Power Cord Flexing Tester With 6 Sets Of Clamps
  • IEC 60884-1 Figure 21 Power Cord Flexing Tester With 6 Sets Of Clamps
  • IEC 60884-1 Figure 21 Power Cord Flexing Tester With 6 Sets Of Clamps
IEC 60884-1 Figure 21 Power Cord Flexing Tester With 6 Sets Of Clamps
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HC9919
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Numbers Of Test Stations: 6, With 6 Sets Of Clamps Numbers Of Flexing Times: 1-999999 (adjustable). With 6 Independent Counters Corresponding To Each Station, And There Is A General Counter
Rate Of Flexing: 10~60 Rpm (adjustable) Flexing Angles: Swivel Angle On Either Side For 45°, 60°, 90°
Breaking Indication: Indicator Display Mechanical Theory: The Crank Block On The Reduction Gearbox Is Driven By The Electric Motor To Do The Reciprocating Action
High Light:

electric socket tester

,

electrical plug tester

IEC 60884-1 figure 21 Power Cord Flexing Tester With 6 Sets Of Clamps



Product Introduction



The plug cord flexibility test apparatus is designed and manufactured according to the standard requirement of IEC 60884-1 figure 21, which is used to process the bending test for the power cord of non rewirable plugs, appliances and similar electrical appliances (electric tools).



The device can be preset test times (up to 999999), it can carry out the test and calculate of the numbers of tests automatically. When the test times reach to the preset value, the system will shut down automatically and completion signals sound. Once the test apparatus connects to external load, it can be used to process test with load.



Technical Parameters



Power Supply AC220V, 60Hz (can customed by the customer)

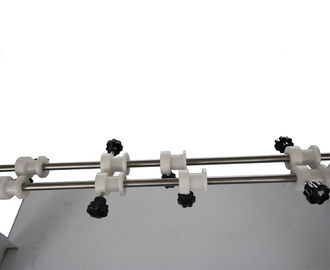

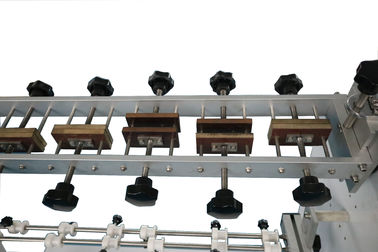

Numbers of Test Stations 6, With 6 Sets Of Clamps
Numbers of flexing times 1-999999 (adjustable). With 6 independent counters corresponding to each station, and there is a general counter
Rate of Flexing 10~60 rpm (adjustable)
Flexing Angles Swivel angle on either side for 45°, 60°, 90°
Sample connecting wires 6 PCS
Weights 10N/20N*6(the weight of UL113g and 284g)
Breaking indication Indicator display
Dimensions L*W*H=870mm *610mm* 820mm
Conforms to standard IEC884-1 Figure 21 and clause 23.4, IEC320-1, VDE0620



Mechanical theory

The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action.
