NFC 61-314 Plug And Socket Endurance Tester

Brand Name:	HongCe
Model Number:	HC9914H
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T,
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Drive:

Panasonic Servo Motor Drive, Torque By Servo Motor Control

Control And Operation:

PLC Intelligent Electrical Control, 7 Inch Color Touch Screen Operation

Working Station:

2 Working Stations, Controlled Independently

Sample Range:

Rotary Plug, Rotary Socket

Test Times:

0-999999 Times, Can Be Preset

Distance Between Workstations:

48-300mm, Can Be Adjust

Packaging Details:

Plywood

Highlight:

NFC 61-314 Socket Endurance Tester

999999 Times Socket Endurance Tester

Product Description

NFC61-314 Rotary Plug And Socket Endurance Tester

NFC61-314 Rotary Plug And Socket Endurance Tester With 2 Working Stations Controlled Independently

Product Introduction

The test machine is designed and manufactured according to NF C 61-314(2017), this device is used for household and similar purpose fixed electrical appliance rotary plug and socket on-off ability, breaking capacity and normal operation life test. To verify whether the switch, plug or socket can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.

Technical Parameters

Model	HC9914H
Control and operation	PLC intelligent electrical control, 7 inch color touch screen operation
Drive	Panasonic servo motor drive, torque by servo motor control
Working station	2 working stations, controlled independently
Sample range	Rotary plug, rotary socket
Test times	0-999999 times, can be preset
Conduction time	0-99.9s, can be preset
Distance between workstations	48-300mm, can be adjust
Rotation angle	0-N*360°, can be preset
Test speed	rotate 0-90°/s, can be preset
Sample fixture	XYZ Three axis fixture,can clamp plug and socket
Test plug and socket	Provided by customer
Load interface	2 pieces
Size and weight	WDH=1090800700mm, about 147kg

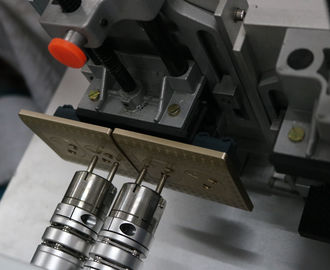

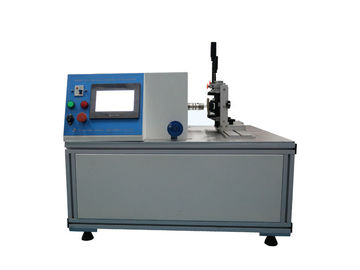

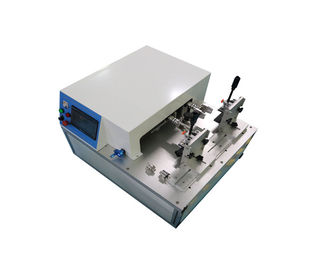

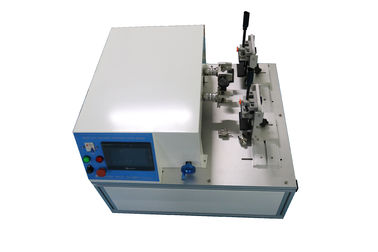

Picture for reference
