We provide you with industry leading test equipment,
advanced online system and solutions–anywhere in the world.
 |
| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate (cost additional) |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Standard: | AS/NZS3112 | Material: | DC53,HRC58 |
|---|---|---|---|
| Types: | Precision Gauge | Measuring Range: | Australian And New Zealand Standard Plug And Socket |
| High Light: | electric socket tester,electrical plug tester |
||

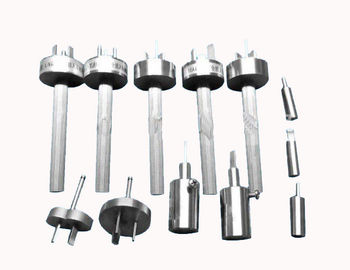

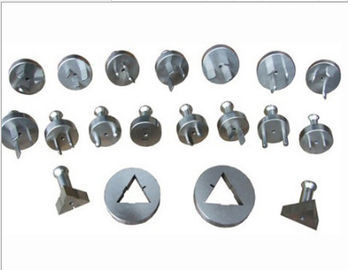

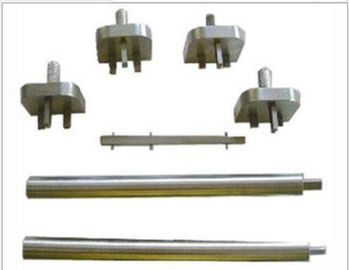

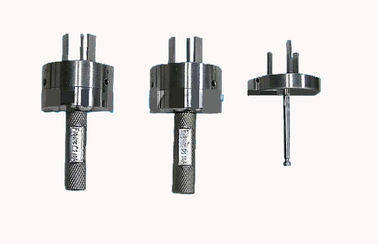

AS/NZS3112 Plug And Socket Gauge
Product information:
The gauges conforms to the standard of AS/NZS3112.It is measuring Australian and New Zealand 's standard plug and socket.
| No. | Standard picture NO. | Gauge name |
| 1 | AS/NZS3112 figure 3.1 | Gauge for depth of no-contact test |
| 2 | AS/NZS3112 figure 3.6 | Device for checking the resistance to lateral strain (Three-pin gauge) |
| 3 | AS/NZS3112 figure 3.7 | Device for checking the resistance to lateral strain (Two-pin gauge) |
| 4 | AS/NZS3112 figure A1 | Gauge for three-pin 250V max flat-pin plugs |
| 5 | AS/NZS3112 figure B1 | Gauge for two-pin flat-pin 125V max plugs(with parallel pins) |
| 6 | AS/NZS3112 figure C1 | Three-pin test plug with flat pins for full-insertion test and the finger test during normal insertion test |
| 7 | AS/NZS3112 figure D | Three-pin test plug with flat pins for abnormal insertion test |
| 8 | AS/NZS3112 figure E | Plugs and socket-outlets for use in extra-low voltage circuits |
| 9 | AS/NZS3112 figure F | Gauge for flat and round pin plugs |
| 10 | AS/NZS3112 figure G | Three-pin test plug with flat and round pins for the full-insertion test and the finger test during normal insertion test |
