1 Station Electrical Appliance Tester , Figure 8 Supply Cord Flexing & Swivel Connections Test Apparatus

1 Station Electrical Appliance Tester , Figure 8 Supply Cord Flexing & Swivel Connections Test Apparatus

Brand Name: HongCe
Model Number: PCF-1B
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detail Information
Place of Origin:
China
Certification:
Third part calibration certificate(cost additional)
Standards:
IEC60335-1 Clause 25.14. Figure 8
Flexing Or Swivel Angle:
0-360°
Flexing Or Swivel Speed:
0~60 Rpm
Test Times:
0~999999 Times, Can Be Preset And Displayed
Control:
PLC Programmable Control
Test Station:
1 Station
Packaging Details:
Plywood
Highlight:

electrical appliance tester

,

portable appliance testing equipment

Product Description

Supply Cord Flexing & Swivel Connections Test Apparatus



Product information:



The power cord flexibility performance tester is special designed and manufactured according to IEC60335-1 clause 25.14. Figure 8, 24.12 of IEC60745-1 Figure 9. 25.101 and 11.101 of IEC60335-2-23 and etc., it is used to check the power cord flexing (bending) resistance performance of the small household appliances (such as Coffee pot / electric iron), applicable for power cord flexing endurance tester of plugs and sockets, and also used to examine the temperature rise performance of the rotary joint of the hair & skin care apparatus after a continuous rotating operation.



The test device adopts to PLC electrical control, 7-inch color touch screen intelligent operation system; servo motor controlling the test angle, high precision digital instrument, high performance digital frequency conversion, precise speed regulation, six number memory timer, multifunctional combined clamps, center gauge of rotation, bending angle adjustable, 4kw output power, can also supply load current to test sample (1.25 times of test sample’s rated current). Test times (maximum of 999999 times), test speed, and test angles can be preset; it has electric current detection function. This device can meet the test requirements of most of small household electrical appliances, the applicable range is widely.



Technical Parameters:



Item Name Parameters
Flexing or swivel angle 0-360°. Can be preset
Flexing or swivel speed 0~60 rpm, can be preset
Test times 0~999999 times, can be preset and displayed
Input Power 120V 60Hz
Control PLC programmable control
Drive Servo motor
Operation 7” Touch screen intelligent operation
Output voltage 0~150V
Max. output current 20A
Max. carrying capacity 15kg
Test station 1 station
Specimen fixture

Universal fixtures for small house appliances, 1 set

Universal fixtures for skin & hair care appliances, 1 set

Temperature Measuring Hand-held infrared thermometer, -50°C~700°C
Load weights 1N*1, 5N*1,10N*1
Standards IEC60335-1 clause 25.14. Figure 8, 24.12 of IEC60745-1 Figure 9. 25.101 and 11.101 of IEC60335-2-23

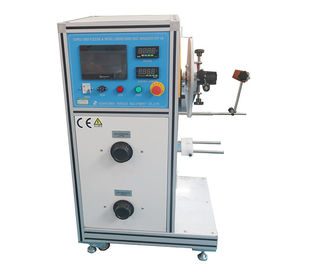

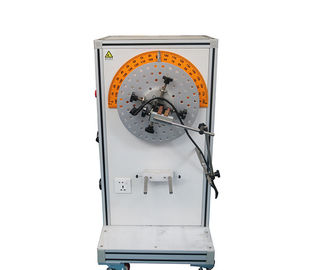

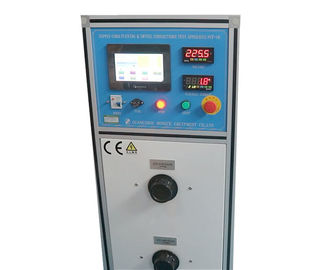

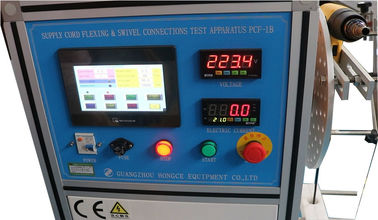

Picture for reference
