ISO 6941 Flammability Testing Equipment 6941 Flammability Tester Burning Flame Height 0~60mm adjustable

Brand Name:	HongCe
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Specimen:

560mmx170mm, Three Each In Warp And Weft

Burning Flame Height:

0~60mm Adjustable

Fire Mouth Angle:

Angle With Horizontal Line: 0°/22.5°/90° Adjustable

Ignition Time:

5 Seconds

Combustion Gas:

Butane Gas

Power Supply:

1 ∮ AC 220V 50Hz

Packaging Details:

Plywood

Highlight:

flammability tester

flame test equipment

Product Description

ISO 6941 Flammability Testing Equipment 6941 Flammability Tester Burning Flame Height 0~60mm adjustable

Standard

ISO 6941

Application

This tester is suitable for clothing with single or multiple components (coatings, quilts, multilayers, laminated products, and the like), curtain plackets and large tents including awnings and door covers for vertical flame propagation performance of textiles. test. This tester can only be used to assess the performance of a material or combination of materials after exposure to flame under laboratory control conditions. The test results do not apply to situations where the oxygen supply is insufficient or if the heat is applied for too long in a fire.

Technical Parameters:

Specimen: 560mmx170mm, three each in warp and weft

Burning flame height: 0~60mm adjustable

Fire mouth angle: angle with horizontal line: 0°/22.5°/90° adjustable

Ignition time: 5 seconds

Combustion gas: butane gas

Power supply: 1 ∮ AC 220V 50Hz

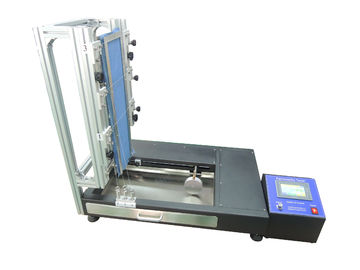

Picture for reference
