IEC60335-1 clause 11 Hot Windind Temperature Tester Double Channel 0.1~20~200~2000Ω Response Time＜30s

Brand Name:	HongCe
Model Number:	RXDC-3
MOQ:	1 set
Price:	Negotiatable
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

TEST OBJECT:

Household And Similar Electrical Appliances

TEST:

Winding Resistance Temperature Rise Measurement

Measure Range:

0.1~20~200~2000Ω

TEST TIME:

Max. 99h59min59s

POWER SUPPLY:

220V AC 50/60Hz

THERMAL RESISTANCE RESPONSE TIME:

30s

Packaging Details:

Plywood

Highlight:

impact test machine

pendulum impact testing machine

Product Description

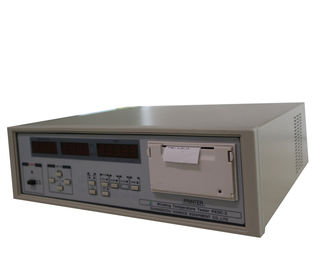

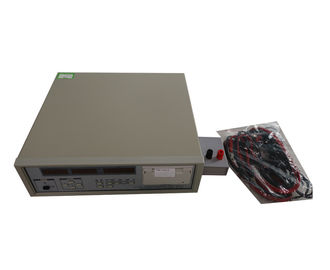

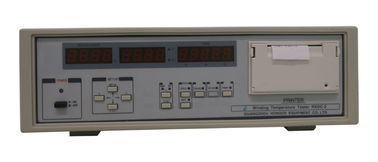

IEC60335-1 clause 11 Hot Windind Temperature Tester Double Channel

product introdution

This instrument is based on IEC60335-1 clause 11 Household and similar electrical appliances-safety-Part 1:General requirements. It can replace the traditional way of bridge measurement, to measure its thermal resistance of winding or coil under the live work situation of motor, transformers, relays and other electrical products. With the characteristic of high speed, high precision, convenient operation and safety, directly display temperature rise etc., thus avoiding complicated operation and measurement errors caused by interruption of power supply, especially the hot tracking function cannot be matched by any traditional method of temperature measurement. It is widely used in various household appliances (such as air conditioners, refrigerators, electric fans, washing machines, etc.) and other small power motors and transformers for winding temperature measurement.

This instrument uses a microcomputer as the core, cold resistance, cold resistance ambient temperature, thermal resistance, thermal resistance ambient temperature, temperature rise, time experiment showed at the same time. Overall circuit has the characters: novel, unique and practical structure design, high integration, stable and reliable, shell with standard cabinet, light and beautiful, it can be used both in the laboratory and on site measuring.

Technical Parameters

1.The maximum test voltage: General is 380V AC; it can not exceed this value when using; test current: specified when ordering (Or capacitance box index). General is 15A, it can not exceed this value when using.

2.Winding temperature coefficient can be set from 0 to 999.9, all off the setting parameters will be saved when power failure.

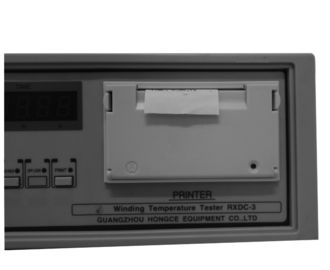

3. The printing interface is 25 pins parallel port, it can be external drive with dot matrix printer or an inkjet printer

4.Power supply:According to customer country's voltage and current.

5.Operation environment: Temperature from 0℃ to 40℃, Humidity of less than 90%.

Measure Range	0.1~20~200~2000Ω
Special Custom-made models	0.1～100～1000～10000Ω,0.01～2～20～200Ω, 0.01～2～20Ω,0.01～2Ω；10.00～200.00～2000.0～20000mΩ and so on
Measurement accuracy	Cold state ±0·1％READ+0·1％FS,hot state ±0·15％READ＋0·15％ FS
Measurement accuracy	Cold state ±0·1％READ+0·1％FS,hot state ±0·15％READ＋0·15％ FS
Air free temperature / Atmospheric temperature	Measure Range 0~50℃,Measurement accuracy ±0.5℃.
Temperature rise	According to the formula.
Hot resistance response time	＜30s.
Support the maximum test time	Max. 99H59M59S,Accuracy ±0·1％.
Size	360mm (L)×315mm(W)×115mm(H), total weight about 9Kg.
