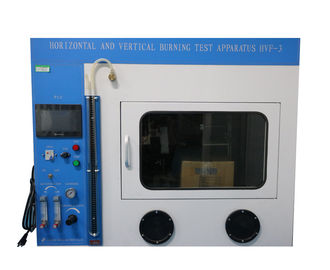

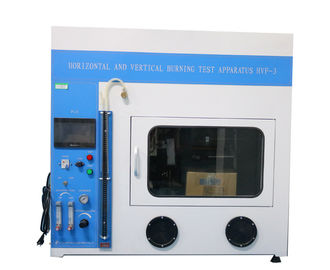

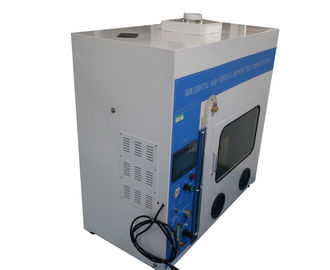

PLC Control Flammability Testing Equipment , Horizontal And Vertical Burning Test Apparatus

PLC Control Flammability Testing Equipment , Horizontal And Vertical Burning Test Apparatus
PLC Control Flammability Testing Equipment , Horizontal And Vertical Burning Test Apparatus

Large Image :  PLC Control Flammability Testing Equipment , Horizontal And Vertical Burning Test Apparatus

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Third party calibration certificate(cost additional)
Model Number: HVF-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Standards: IEC60695,GB5169,UL94,UL498,UL1363,UL498A And UL817 Operating System: Mitsubishi PLC Control,Weinview 7 Inch Color Touch Screen Operation
Burning Angle: 0°,20°,45°adjustable Burner: Diameter 9.5mm ± 0.5mm,length 100mm,Imported Products,conform To ASTM5025
Checking Time: 44±2S/54±2S
High Light:

PLC Flammability Testing Equipment

,

45° Adjustable Flammability Testing Equipment

IEC60695 Flammability Testing Equipment Horizontal And Vertical Burning Test Apparatus PLC Control 7 Inch Color



Products information



This flammability tester simulate the influence of early-stage flame when there is a fire around the electric and electronic products, so that to judge the igniting danger degree. Mainly used in plastic and other non-metallic material sample, solid material. It is also applicable in the Horizontal, vertical flammability test of the relative combustion characteristic of foam plastics whose density is no-less than 250kg/m according to ISO845 test method.


This 50W and 500W horizontal-vertical flame test equipment adopts the advanced Mitsubishi PLC intelligent control system, 7 inches touch screen, with humanized operation interface, and with remote wireless sensors operation so that record more precise; using integral intake ignition systems, the combustion time delays 0.1S, thus to make sure the sufficient time of gas burning.

The testers adopt to matte black background, multi-functional flame measure gauge to make the flame adjustment works easier, box full of stainless steel, large observation window, imported fire control systems, nice appearance.





Model specifications and technical parameters



Type 50W&500W
Meet the standards IEC60695,GB5169,UL94,UL498,UL1363,UL498A and UL817
Power 220VAC,50HZ or 110VAC, 60Hz
Operating system Mitsubishi PLC control,Weinview 7 inch color touch screen operation
Burner Diameter 9.5mm ± 0.5mm,length 100mm,Imported products,conform to ASTM5025
Burning angle 0°,20°,45°adjustable
Flame height 20mm~125mm±1mm adjustable
Timing device 9999X0.1s can be preset
Thermocouple Φ0.5mm Omega K-type Thermocouple
Thermometry distance 10±1mm/55±1mm
Temperature measurement MAX 1100°C
Gas flow Using imported flowmeter,105 ± 10 ml/min and 965±30ml/min adjustable,precision 1%
Height of water column Using imported U-tube, the height difference is less than 10mm
Checking time 44±2S/54±2S
Thermometry copper head

Ф5.5mm,1.76± 0.01 g;

Ф9mm±0.01mm10 ± 0 .05 g,Cu-ETP purity:99.96%

Gas category Methane
Box volume More than 1 cube, black matte background with exhaust fan






Picture for reference

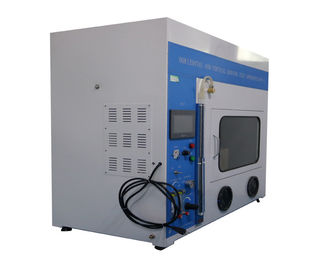

PLC Control Flammability Testing Equipment , Horizontal And Vertical Burning Test Apparatus 0
