| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HC9925 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set /month |

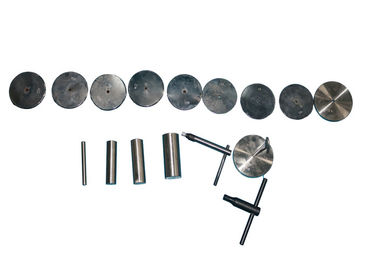

| Material: | Stainless Steel | Cylindrical Metal Rod: | 14 Pc In All |
|---|---|---|---|
| Weights: | 20N, 40N, 50N, 60N | Diameter Of The Disc: | 250mm |
| Standard: | IEC 60884-1 2013 Clause 24.6, IEC 60598-1 Clause 4.12.5 | Test Sample: | Screwed Gland |
| High Light: | socket tester,electrical plug tester |
||

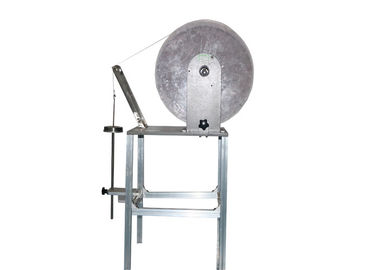

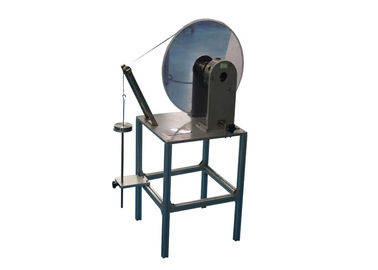

IEC60884 Clause 24.6 IEC Testing Equipment Of 250mm Screwed Gland Torque Resistance Strength Tester
Standard: IEC 60884-1 2013 clause 24.6, IEC 60598-1 clause 4.12.5
Application: This device is use for test the torque resistance strength of screwed gland of lamps and similar appliances.
Test sample: Screwed gland of lamps and similar appliances.

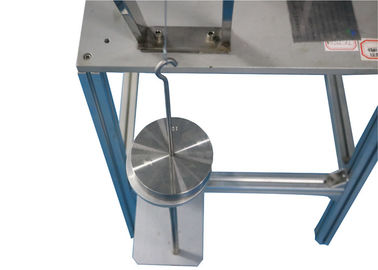

Feature: Floor type support, lifting weights mechanism drive turntable to achieve torque test.
Parameters:
| Diameter of test rod(mm) | Metal glands(N.m) | Glands of moulded material(N.m) |
| <7 | 6.25 | 2.5 |
| 7~14 | 6.25 | 3.75 |
| 14~20 | 7.5 | 5 |
| >20 | 10 | 7.5 |
Standard clause:
Screwed glands are fitted with a cylindrical metal rod having a diameter ,in millimetres,equal to the nearest whole number below below the internal diameter ,in millimetres ,of the packing .
The glands are then tightened by means of a suitable spanner ,the torque shown in table 22 being applied for 1 min .
Table 22-torque test values for glands
|
Diameter of test rod mm |
Torque Nm | |
| Metal glands | Glands of moulded material | |
| Up to and including14 | 6.25 | 3.75 |
| Above 14,up to and including 20 | 7.5 | 5.0 |
| Above 20 | 10.0 | 7.5 |
After the test ,the glands and the enclosures of the specimens shall show no damage within the meaning of this standard .
